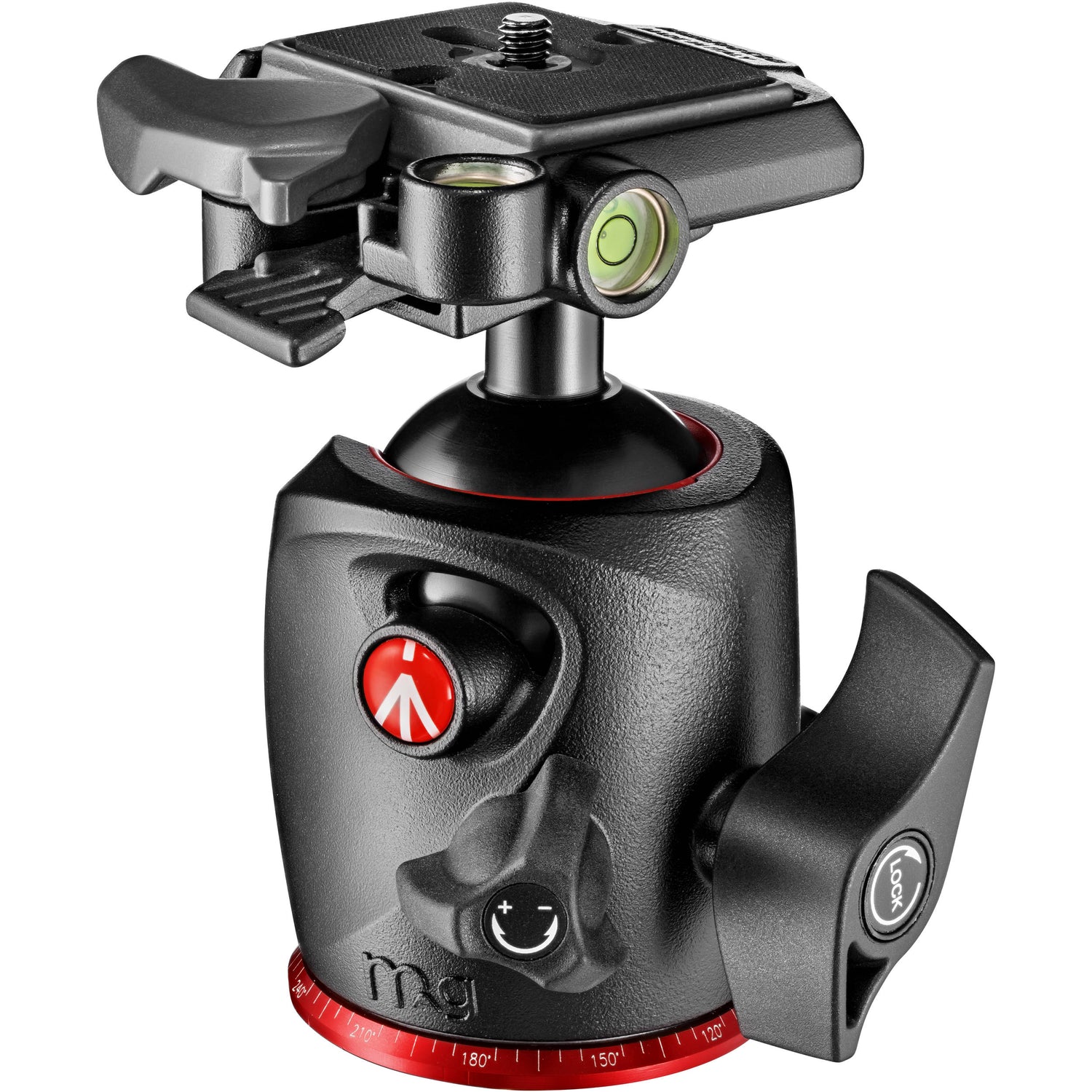

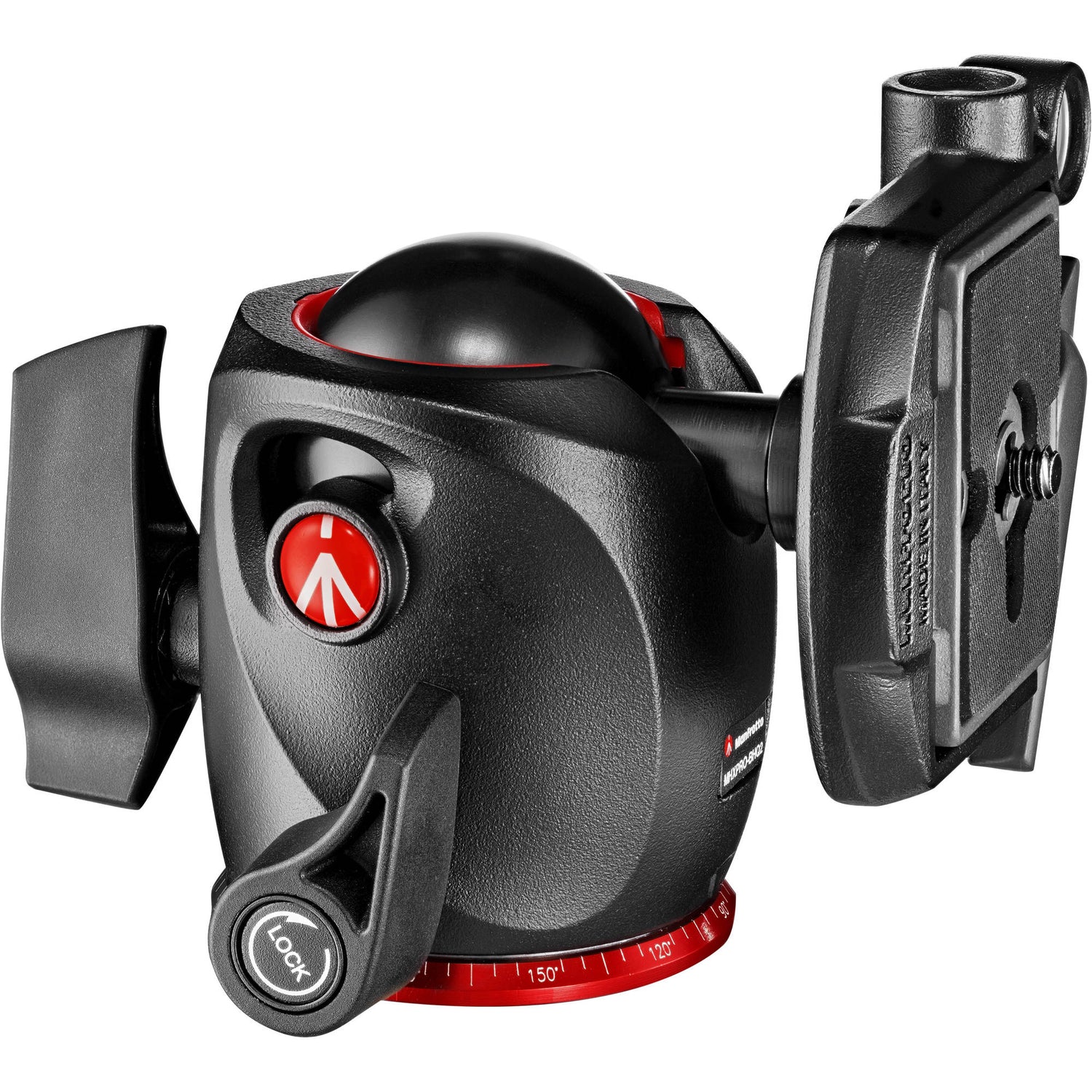

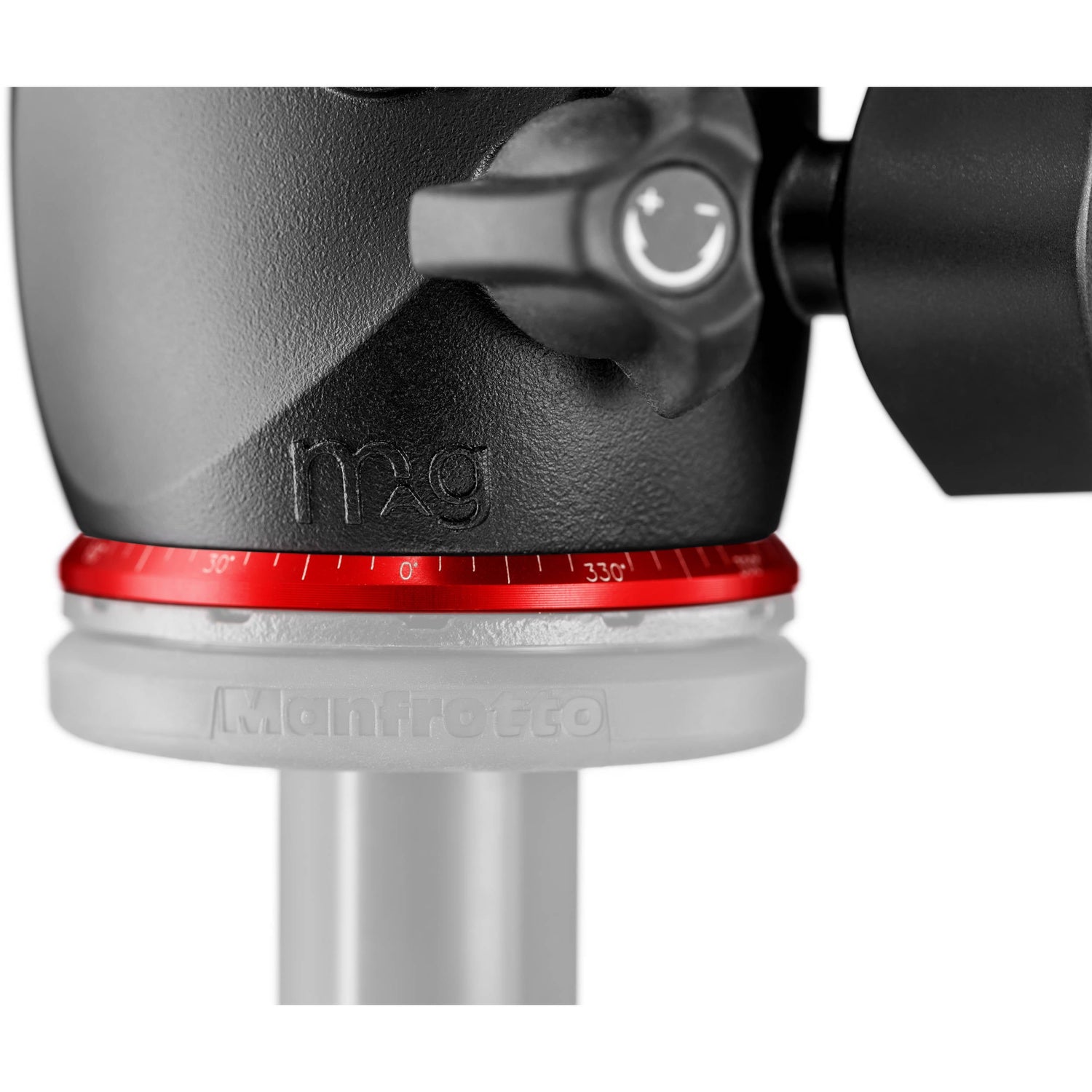

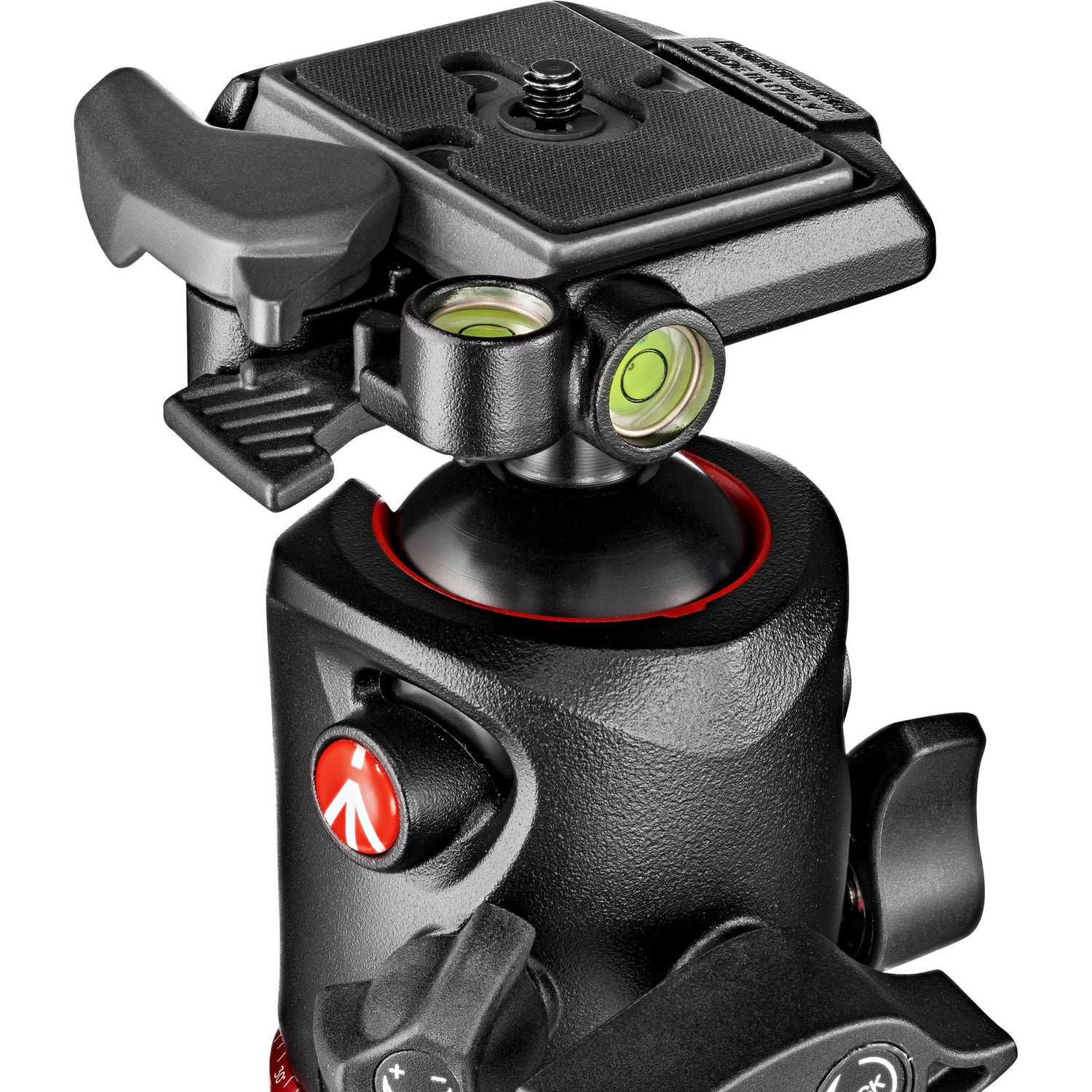

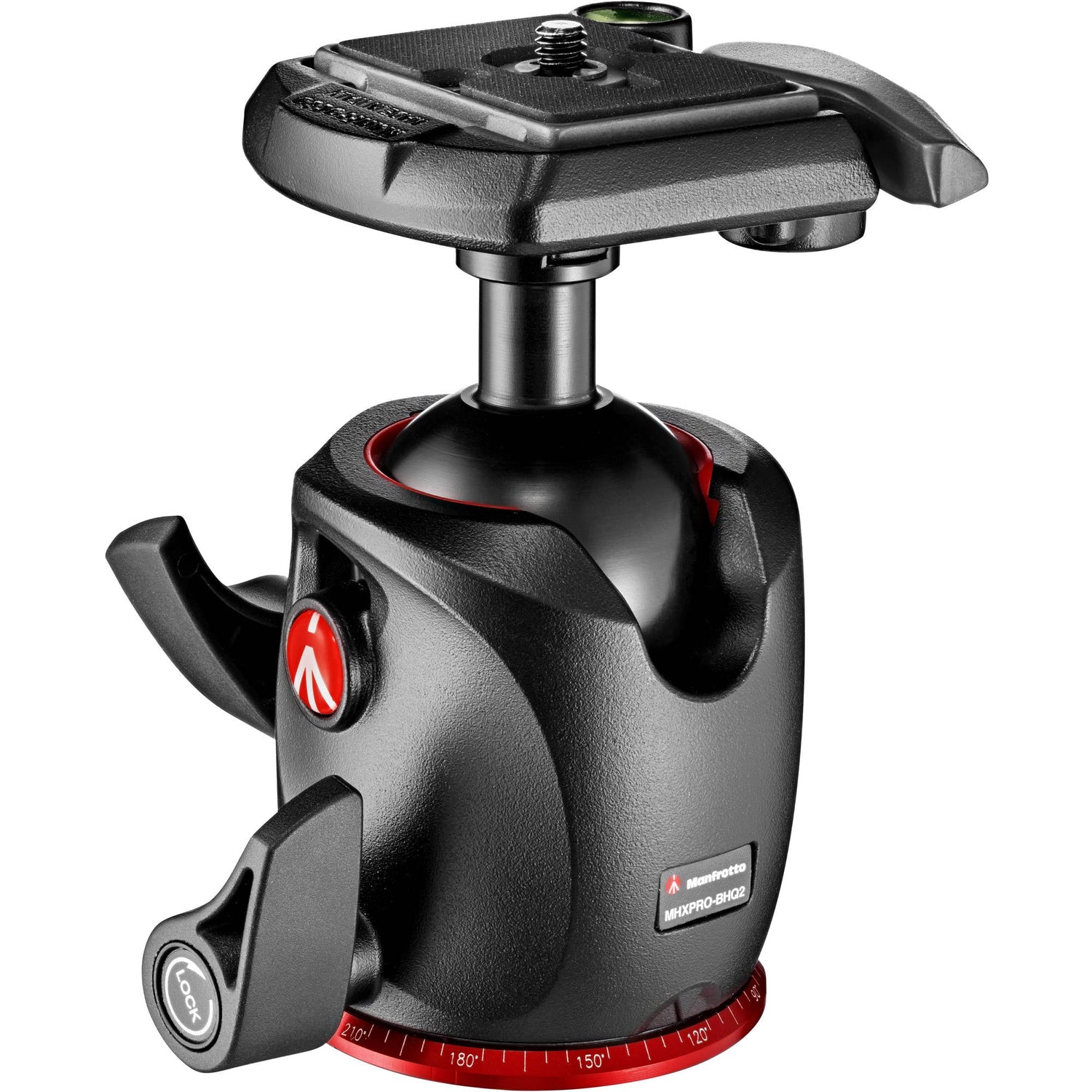

This XPRO Magnesium Ball Head from Manfrotto features an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting. The XPRO Magnesium Ball Head with 200PL-14 Quick Release Plate has a load capacity of 22.1 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening this XPRO Magnesium Ball Head's primary locking knob, its ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Toward the ball head's base is a secondary locking knob that controls the ability to rotate the head 360°. An additional knob opposite the secondary locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-14 quick release plate which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface. XPRO Magnesium Ball Head 22.1 lb load capacity Compatible with tripods or support systems that feature a 3/8"-16 mount Uses ball-and-socket joint to help maximize pan-and-tilt flexibility Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place Integrated RC2 quick release cam lock Primary locking knob allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position Secondary locking knob allows head to rotate 360° Dedicated tension control knob for the ball-and-socket joint's movements One bubble level for landscape orientations and one bubble level for portrait orientations Durable, magnesium-alloy construction
Manfrotto MHXPRO-BHQ2Â Specs
General
Head Type |
Ball Head |
Base Mount |
3/8"-16 Thread |
Camera Mounting Screw |
1/4"-20 Male |
Quick Release Plate Type |
RC2 |
Load Capacity |
22.1Â lb / 10.02Â kg |
Number of Bubble Levels |
2 |
Friction Control |
Yes |
Independent Pan Lock |
Yes |
Material |
Magnesium |
Pan & Tilt Range
Lateral Tilt |
-90° to +40° |
Vertical Tilt |
-40° to +40° |
Panning Range |
360° |
Physical
Ball Sphere Diameter |
1.77" / 45.0Â mm |
Dimensions |
H: 4.5 x W: 2.4" / H: 115.1 x W: 60.0Â mm |
Weight |
17.6Â oz / 0.5Â kg |
Packaging Info
Package Weight |
1.4 lb |
Box Dimensions (LxWxH) |
5.3 x 4.9 x 3.65" |
|
