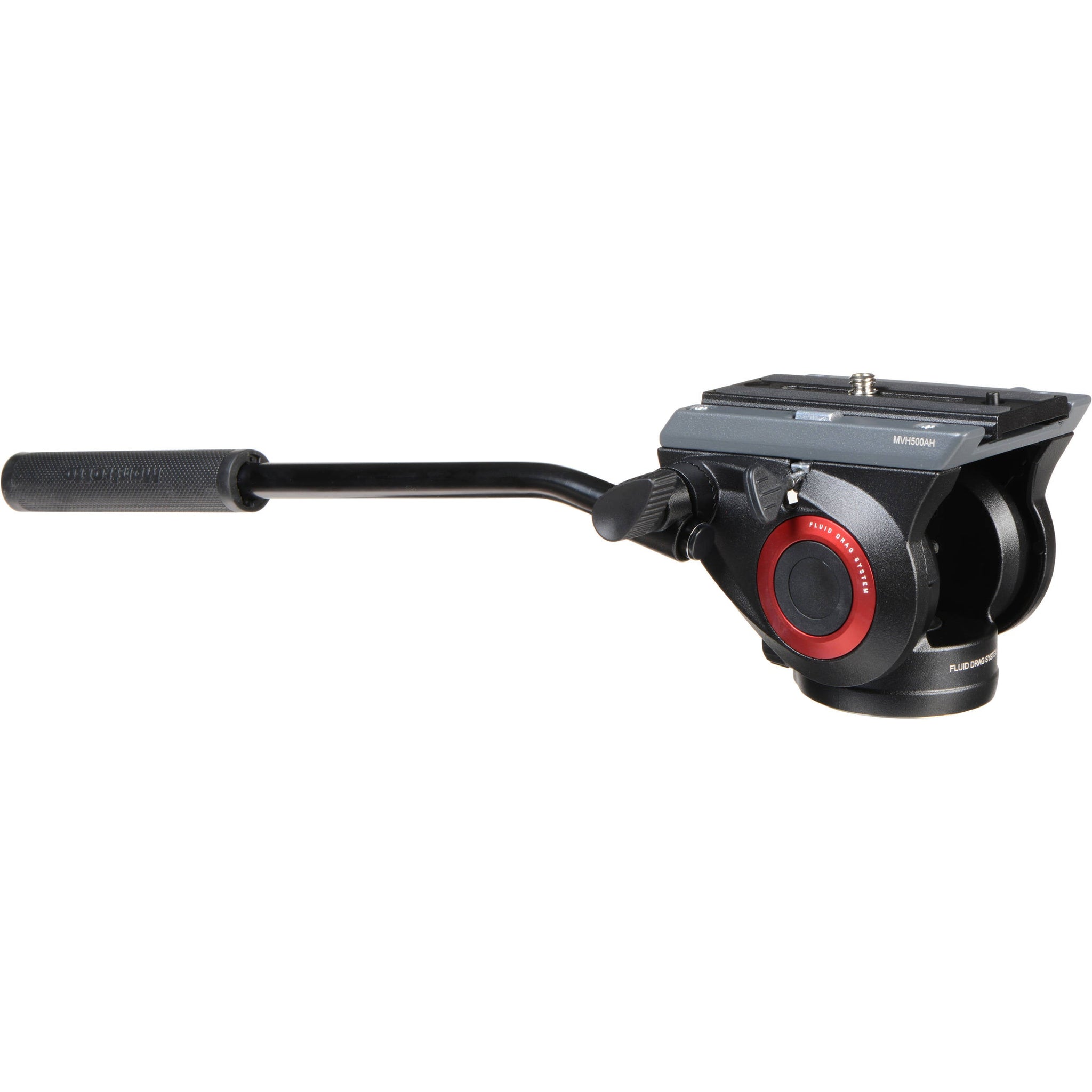

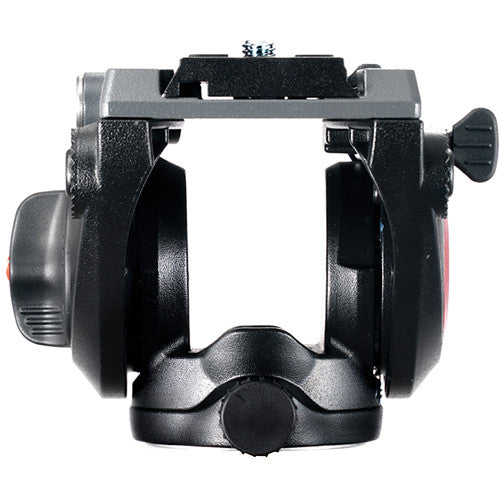

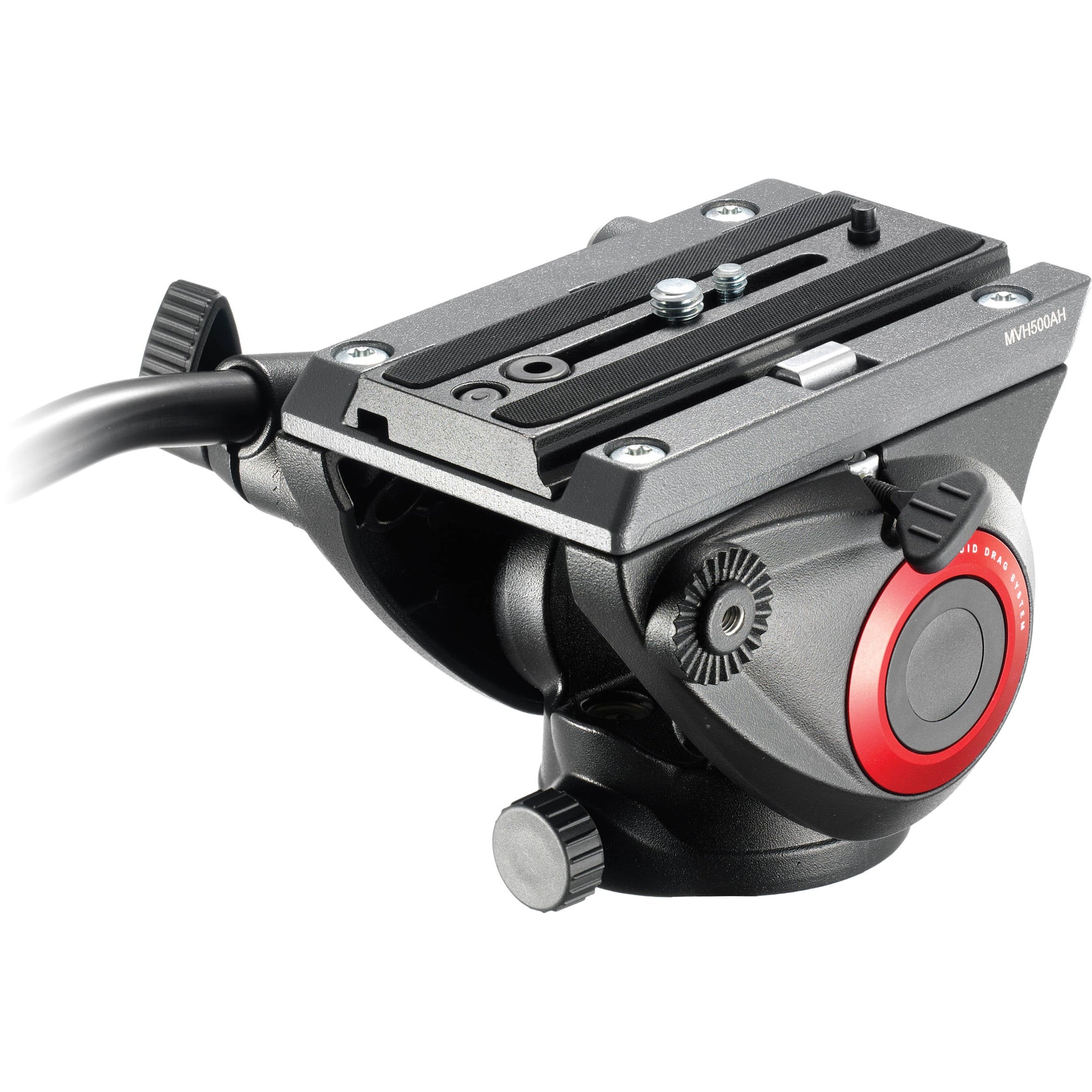

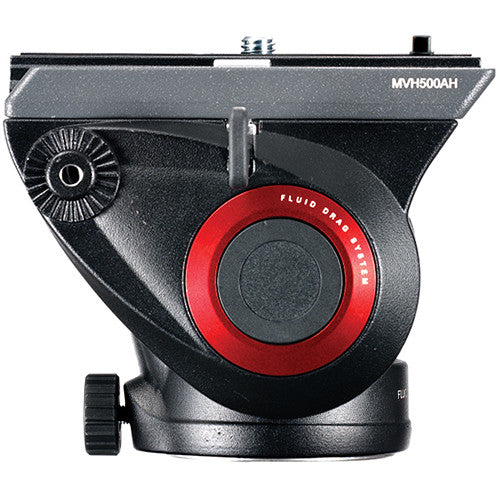

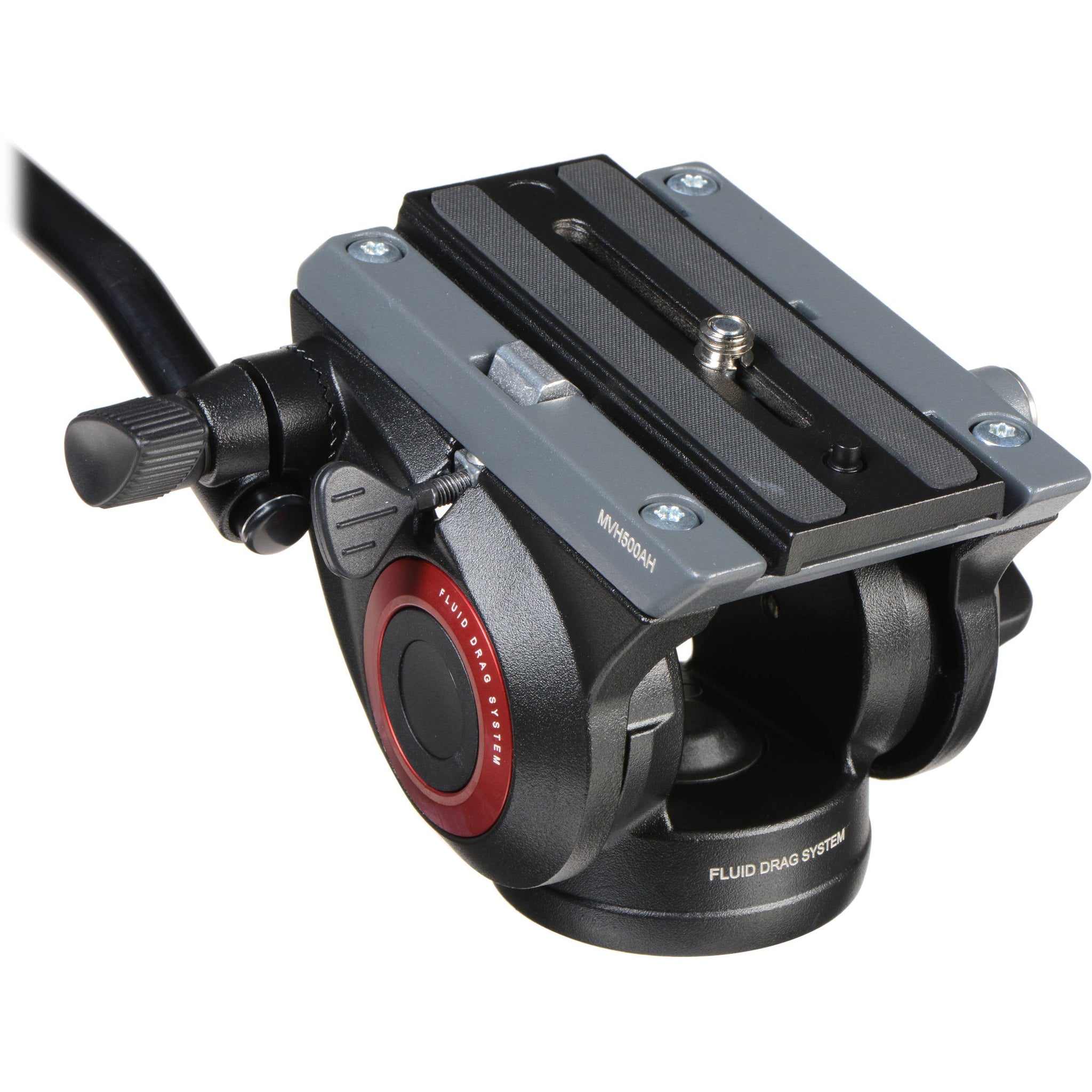

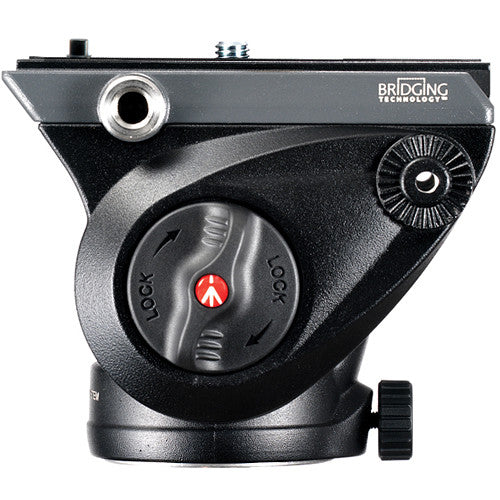

Manfrotto MVH500AH Fluid Video Head with Flat Base
Rated 3.5/5 based on 11 customer reviews

Manfrotto MVH500AH Fluid Video Head with Flat Base

Available: Out of Stock
Wishlist Compare
Rs. 10,448.00
Successful pre-order.Thanks for contacting us!

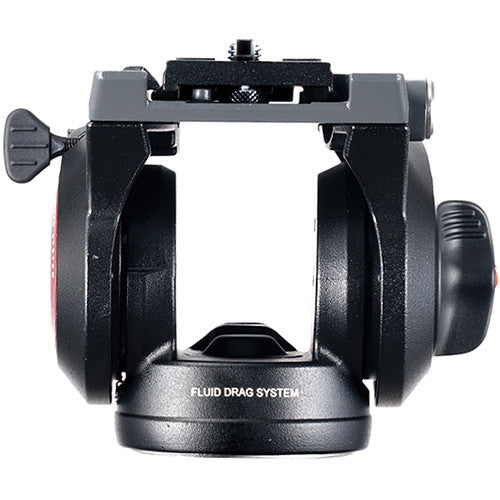

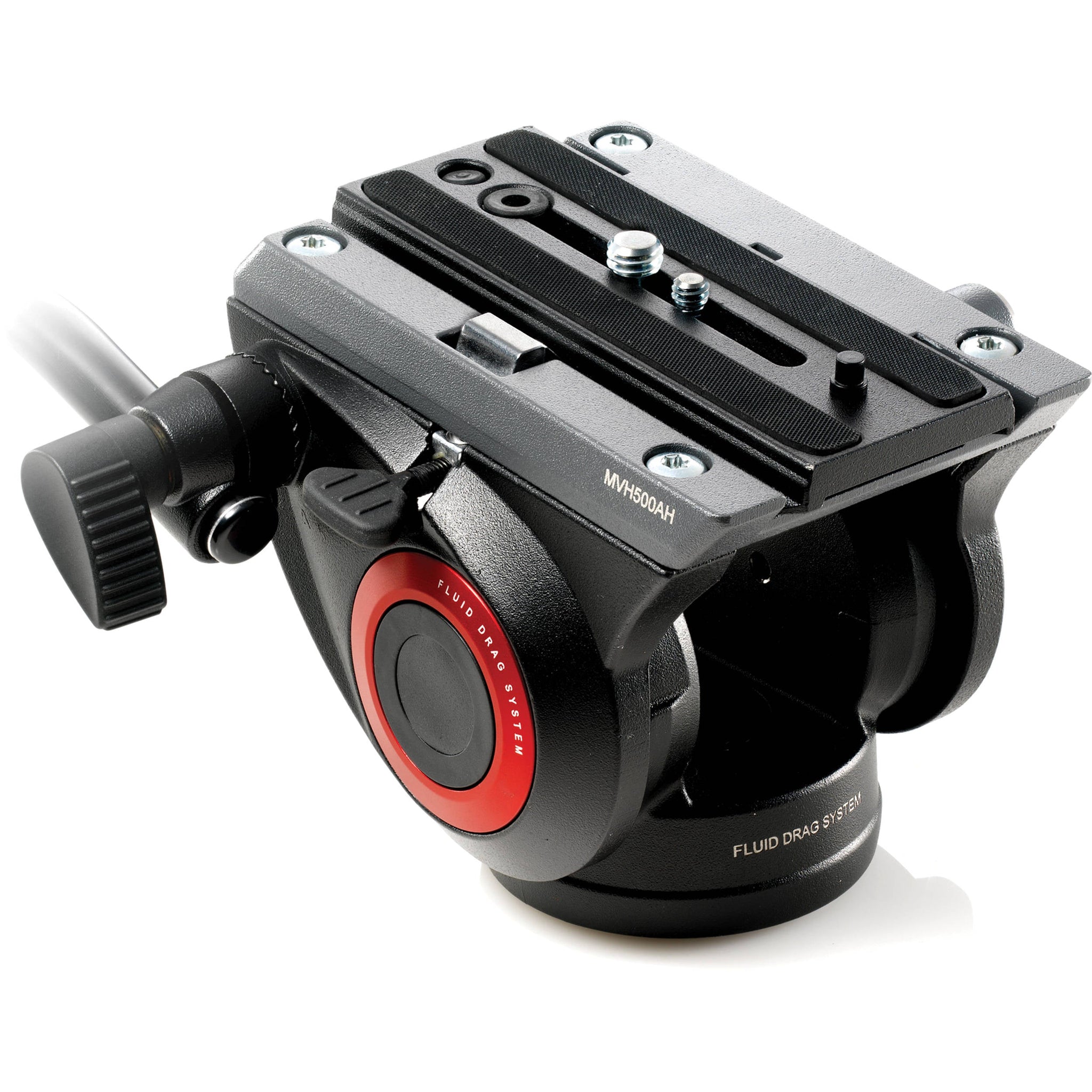

The MVH500AH Fluid Video Head with Flat Base from Manfrotto is designed with a wide platform, optimal for HDSLR camera bodies. Smooth and precise, it has a maximum weight load of 11 lb and professional quality fluid cartridges on both its pan and tilt axes. It has a pre-set spring-loaded counterbalance of 5.3 lb, its lateral tilt range is -70°/+90° and it provides 360° panning rotation.

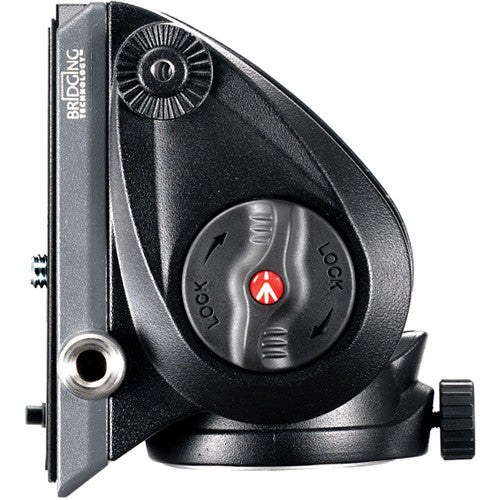

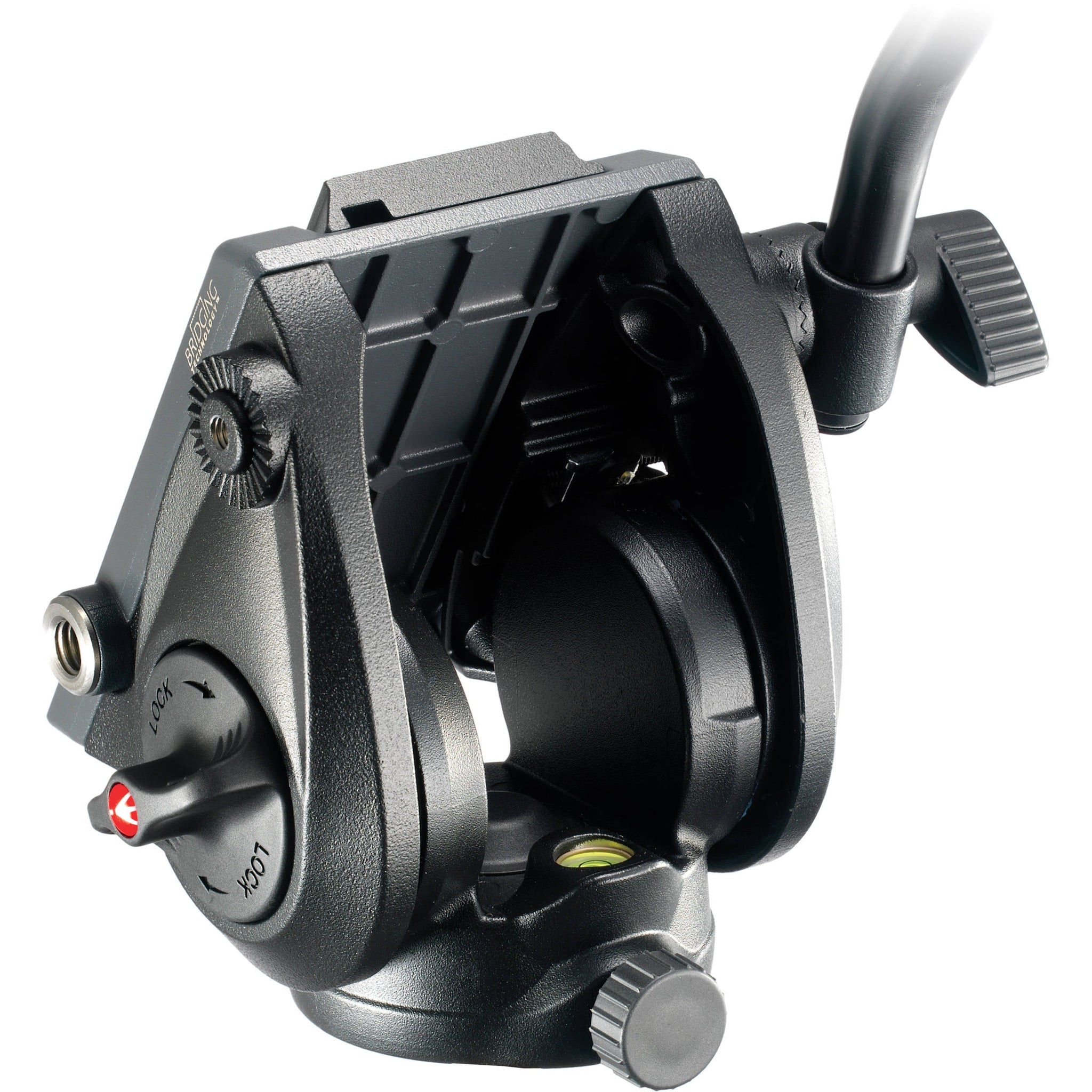

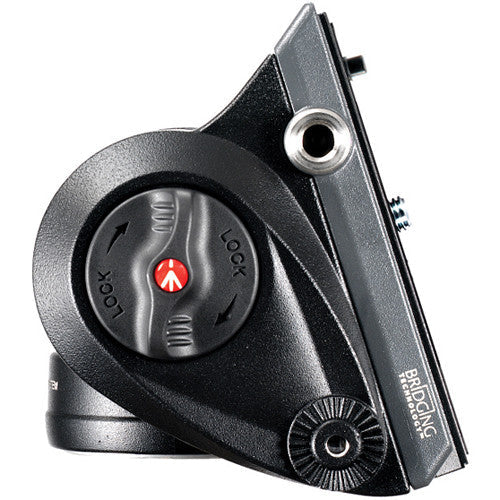

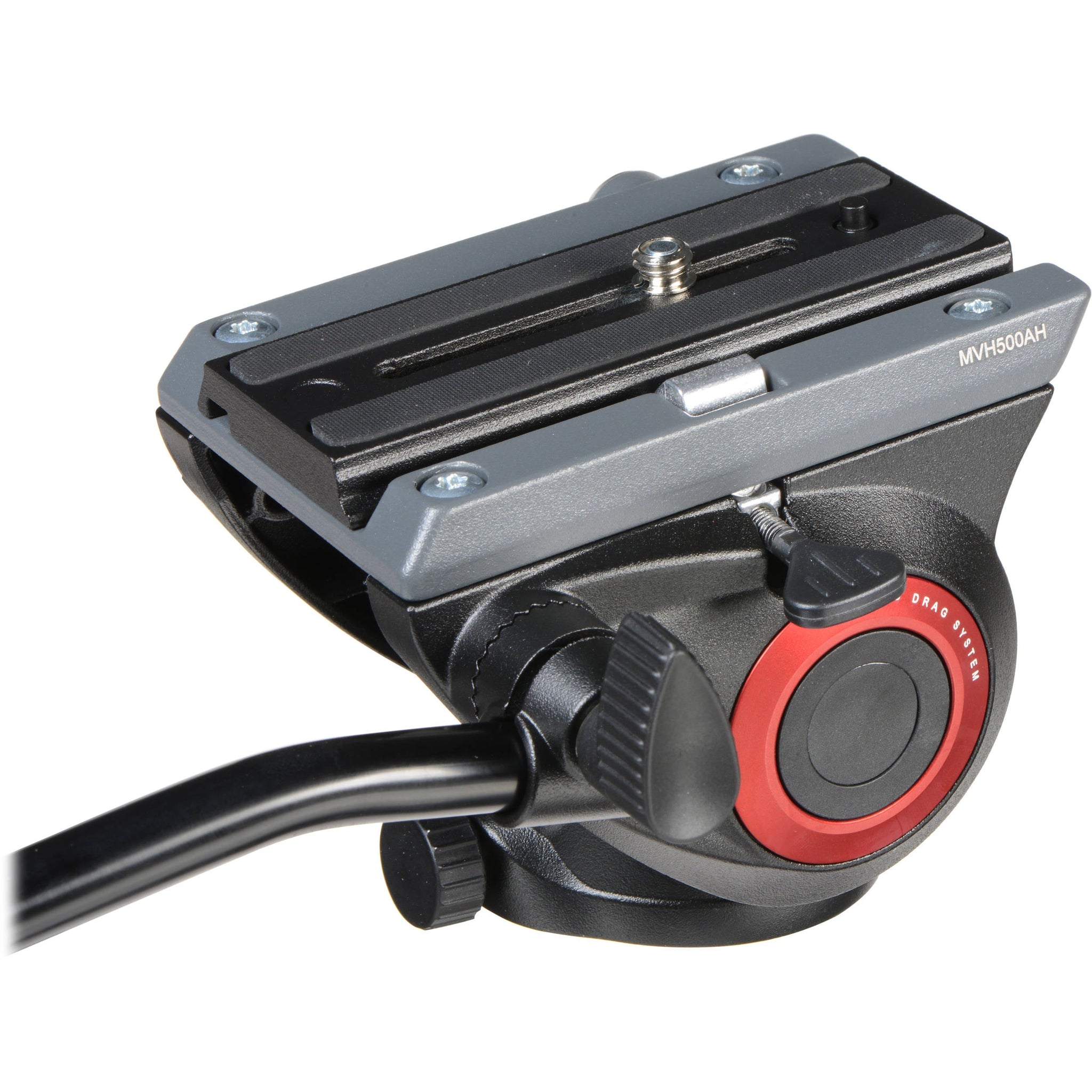

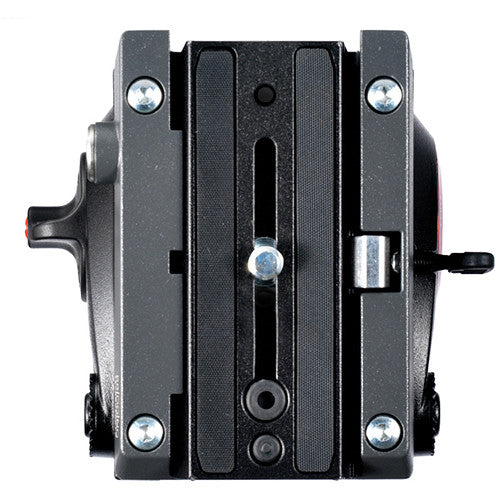

The side lock system on the MVH500AH allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. This makes it easier and safer to mount your camera on this head. The head attaches to a tripod via a 3/8"-16 thread and includes a 500PLONG sliding balance plate with a captive 1/4"-20 tie-down screw and a 3/8"-16 adapter bushing. It also provides an Easy Link 3/8" connector on the side of the head to attach accessories such as a video monitor.

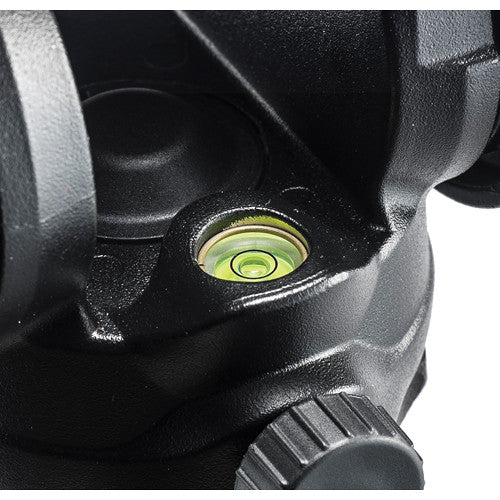

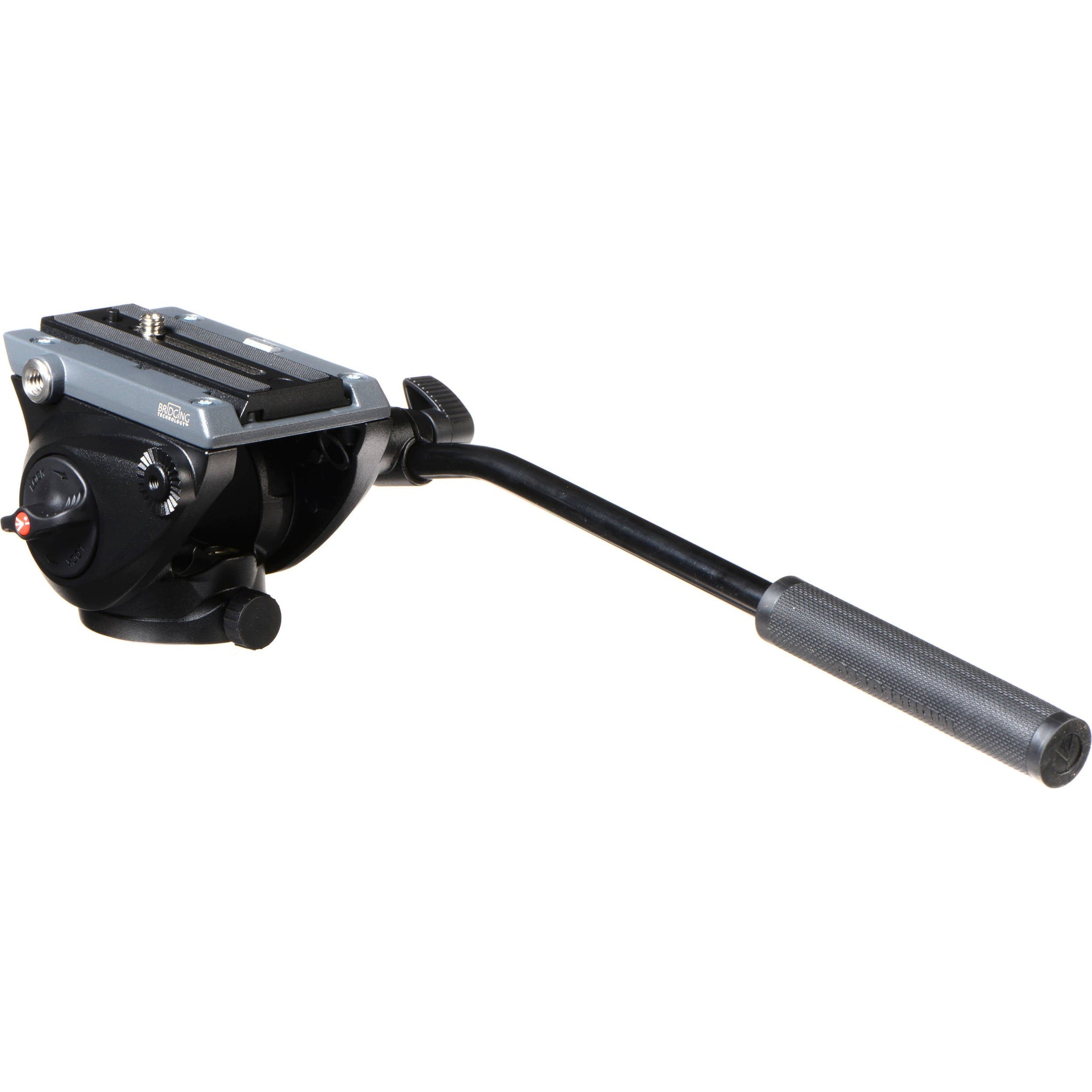

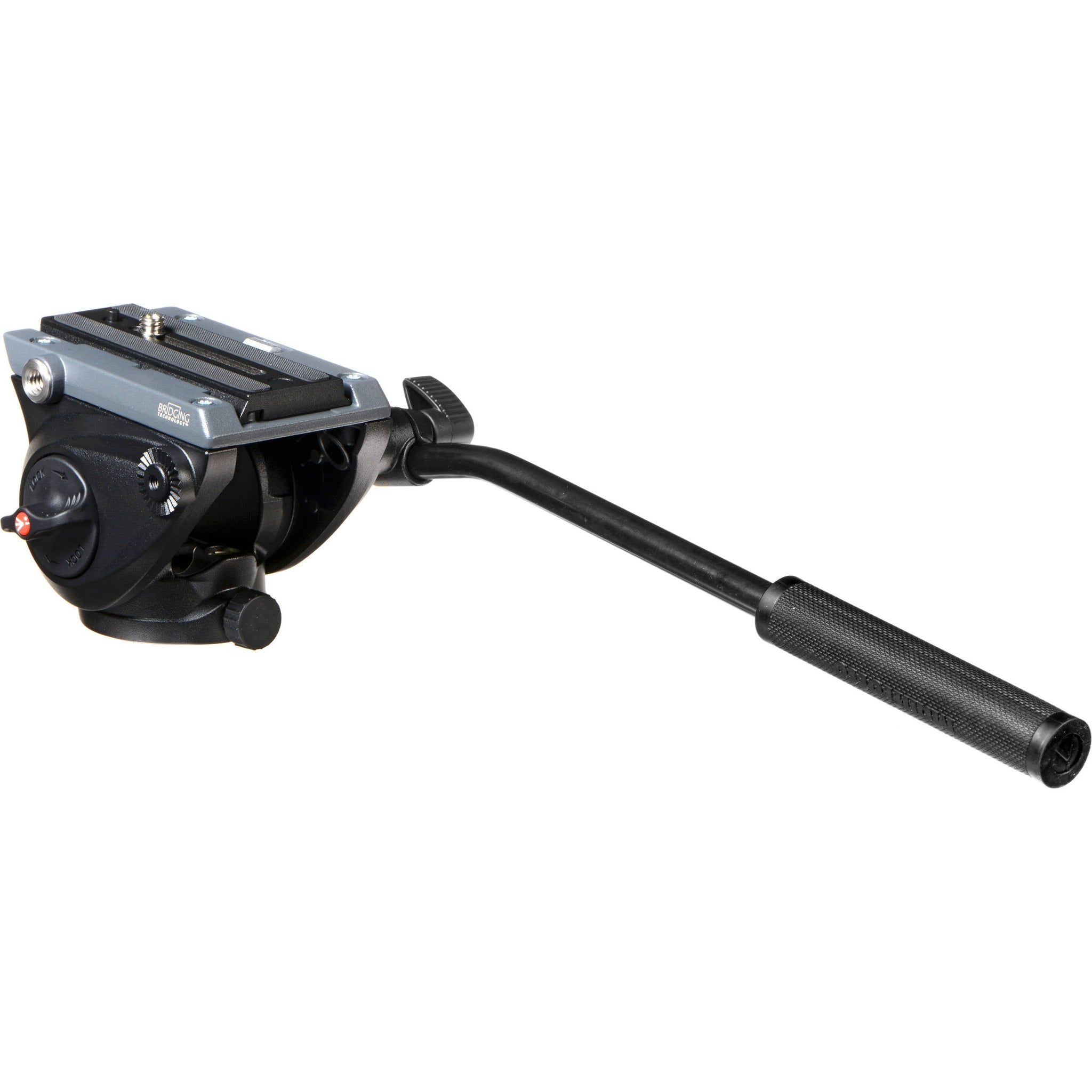

The MVH500AH is made from aluminum alloy, measures 3.74" high and provides a bubble level and precision control handle.

Wide platform fluid pan video head ideal for HDSLR cameras
5.3 lb pre-set spring-loaded counterbalance system
Side-lock system for easier and safer camera mounting
Aluminum alloy construction
Includes long quick-release plate
11 lb maximum weight capacity

Manfrotto MVH500AH Specs

Camera Plate
Camera Plate Features Sliding Balance Plate, Quick Release
Camera Plate Type 500PLONG
Camera Mounting Screw 1 x 1/4"-20 Male
1 x 3/8"-16 Male
Tripod Platform

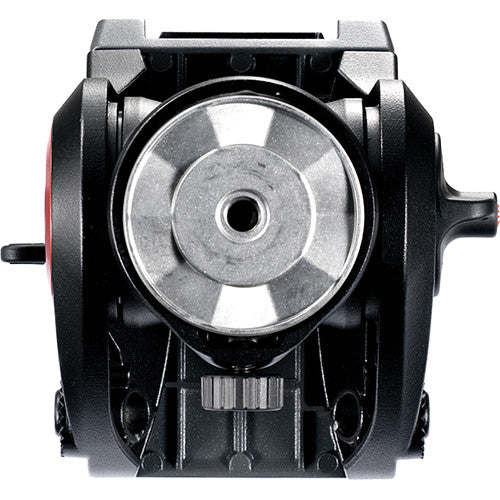

Base Mount 3/8"-16 Thread
Pan & Tilt
Drag Control Fixed
Drag Type Fluid
Vertical Tilt +90° to -70°
Panning Range 360°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Physical
Material Aluminum
Load Capacity 11 lb / 5 kg
Counter Balance Fixed (5.3 lb / 2.4 kg)
Bubble Level 1
Operating Temperature -4 to 140°F / -20 to 60°C
Dimensions 3.74" / 9.5 cm
Weight 2 lb / 0.9 kg
Packaging Info
Package Weight 3.565 lb
Box Dimensions (LxWxH) 14.35 x 6.45 x 6.4"
Manfrotto MVH500AH Fluid Video Head with Flat Base
500PLONG Quick Release Plate
Handle
