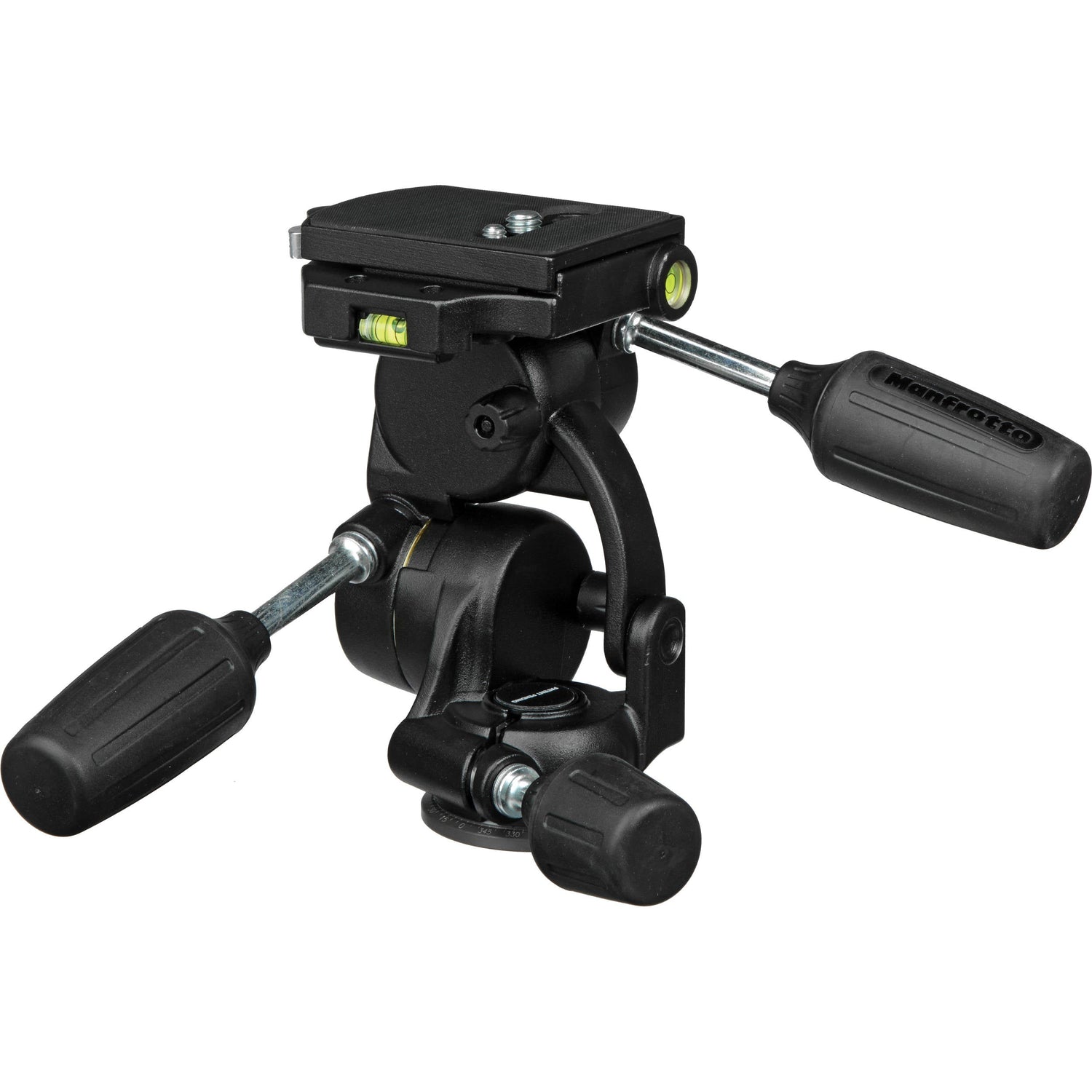

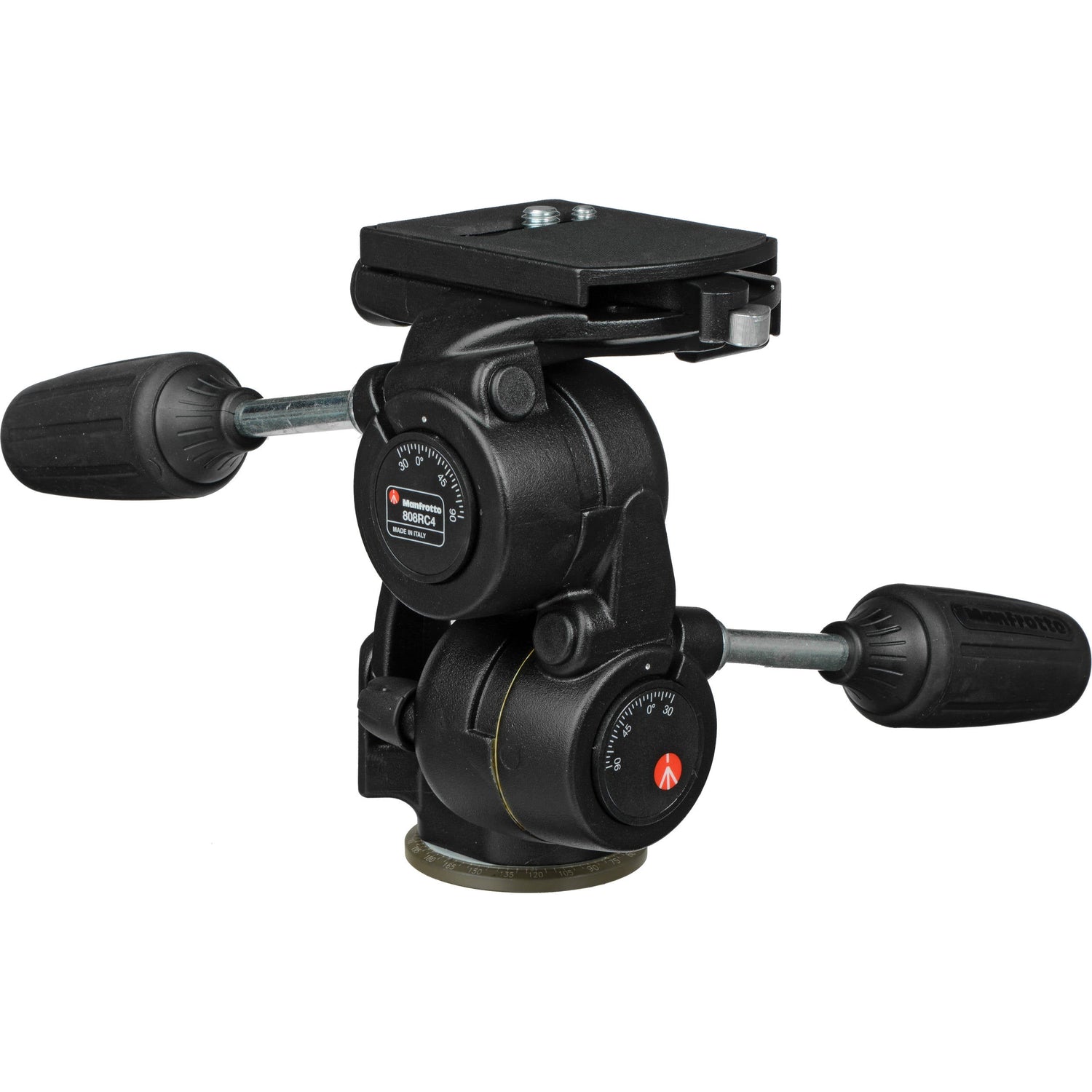

Manfrotto 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate
Rated 3.5/5 based on 11 customer reviews

Manfrotto 808RC4 3-Way, Pan-and-Tilt Head with 410PL Quick Release Plate

Available: Out of Stock
Wishlist Compare
Rs. 10,979.00
Successful pre-order.Thanks for contacting us!

The 808RC4 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.

Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place by twisting each corresponding handle's rubberized grip.

To promote fast, repeatable, and accurate device positioning, the 808RC4 3-Way, Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility. For heavier loads, built-in counterbalance springs can be user-activated to help ensure smooth as well as gradual backwards, forwards, and portrait orientation tilt movements.

808RC4 3-Way, Pan-and-Tilt Head
17.6 lb load capacity
Compatible with tripods or support systems that feature a 3/8"-16 mount
Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation
Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place
Dedicated angle scales for each movement that are designed for easy visibility promote fast, repeatable, and accurate device positioning
Built-in counterbalance springs help ensure smooth as well as gradual backwards, forwards, or portrait orientation tilt movements for heavier loads
Dedicated, counterbalance spring on-off knobs for backward and forwards tilt, as well as portrait orientation tilt
Integrated, RC4 quick release cam lock
Two bubble levels for landscape orientations and one bubble level for portrait orientations
Durable, aluminum-alloy construction
410PL Quick Release Plate
Compatible with Manfrotto RC4 quick release cam lock
Measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface
1/4"-20 and 3/8"-16 mount
Durable, aluminum-alloy construction

Manfrotto 808RC4 Specs

General
Head Type Pan & Tilt Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male, 3/8"-16 Male
Quick Release Plate Type RC4
Load Capacity 17.6 lb / 7.98 kg
Number of Bubble Levels 3
Material Aluminum
Pan & Tilt Range
Lateral Tilt -90° to +30°
Vertical Tilt -30° to +90°
Panning Range 360°
Physical
Base Diameter 2.36" / 6 cm
Dimensions H: 6.1" / H: 15.6 cm
Weight 3.3 lb / 1497 g
Packaging Info
Package Weight 3.29 lb
Box Dimensions (LxWxH) 7.9 x 5 x 4.5"
