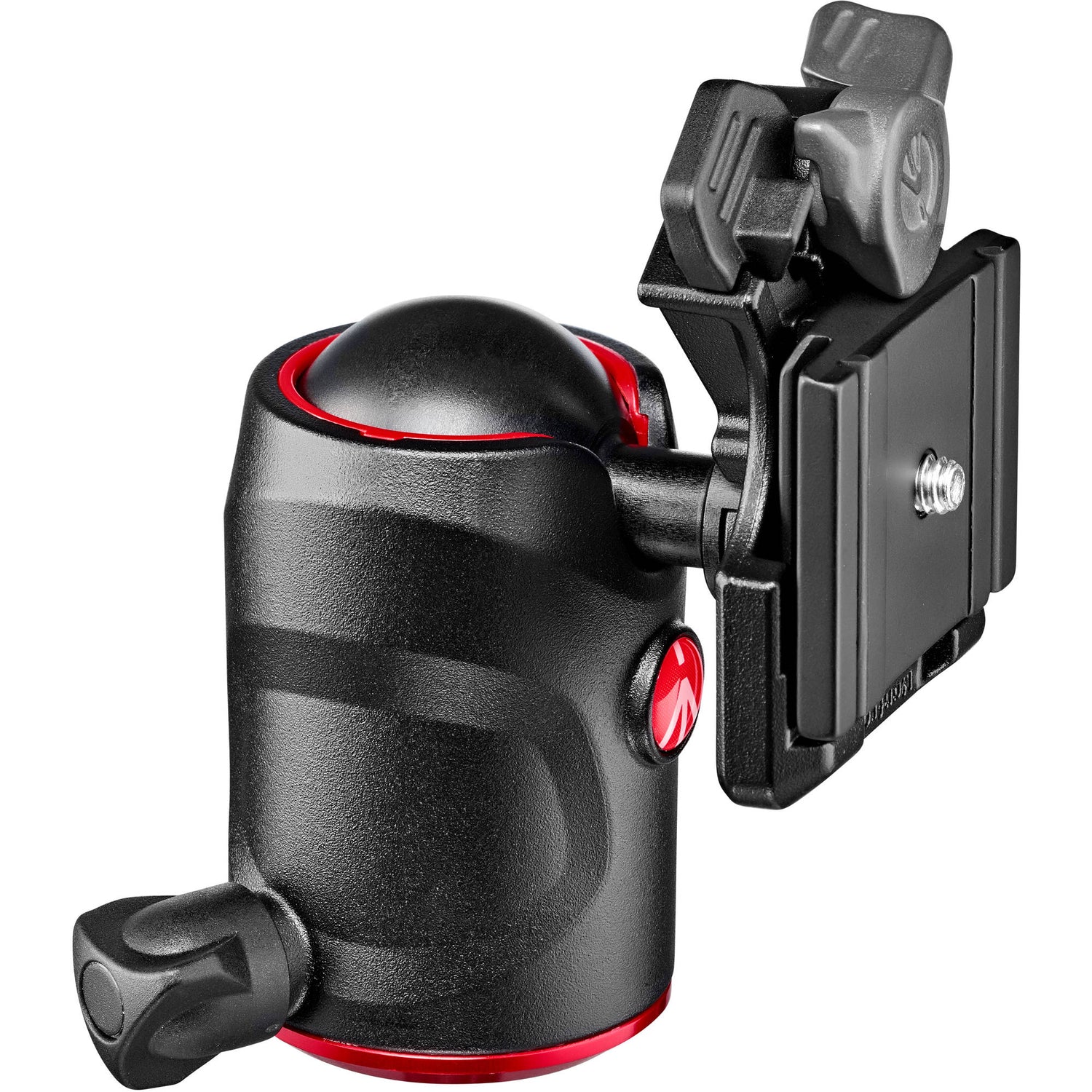

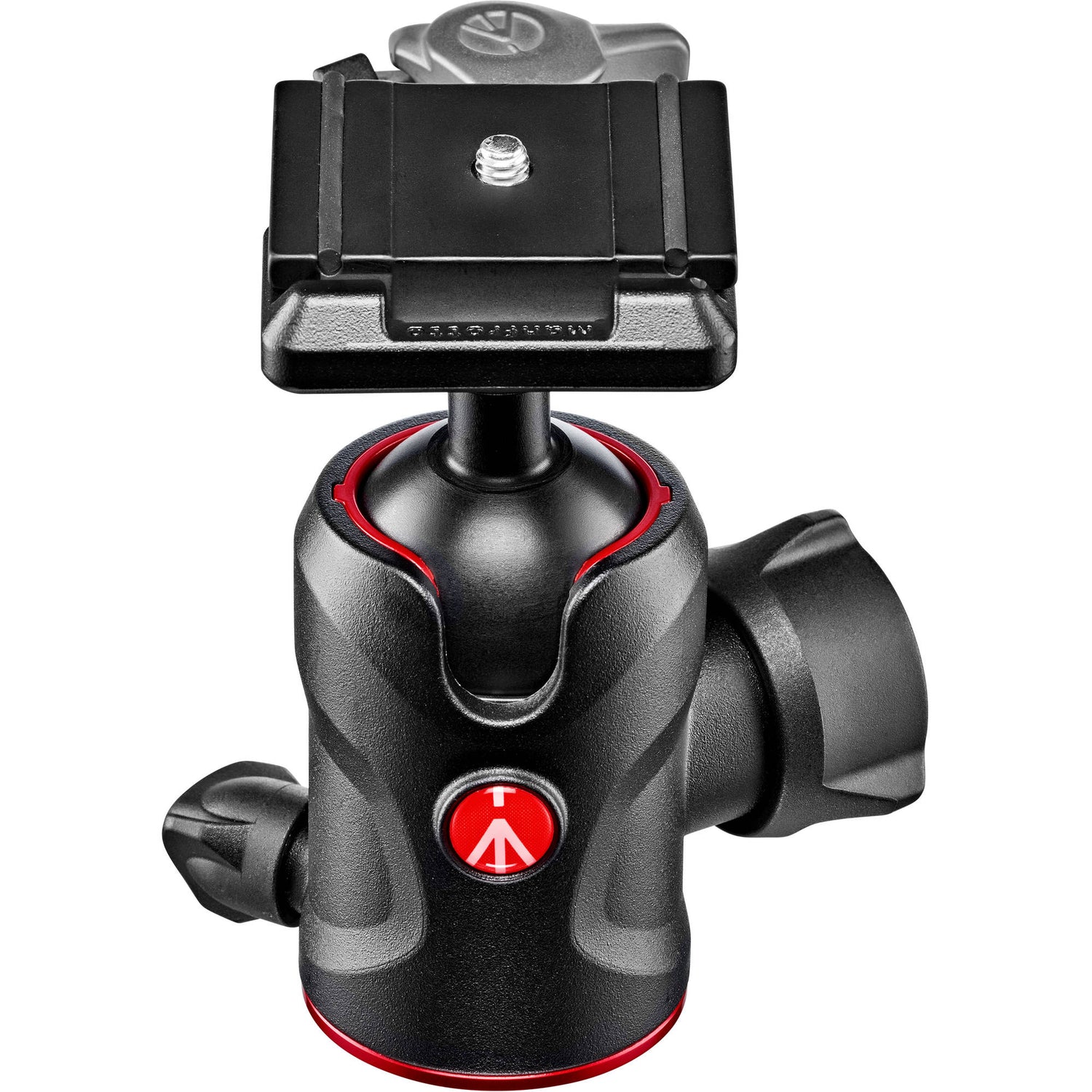

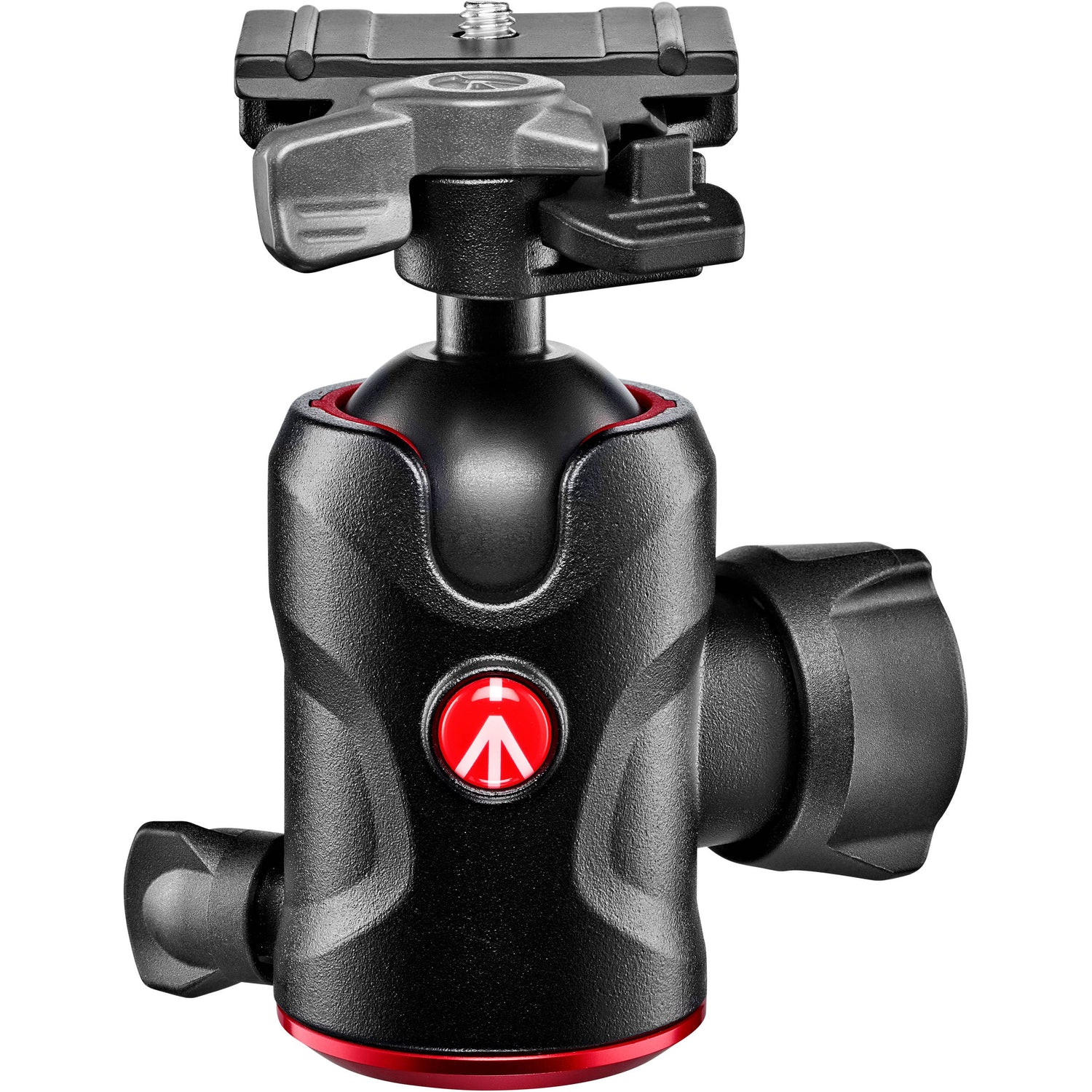

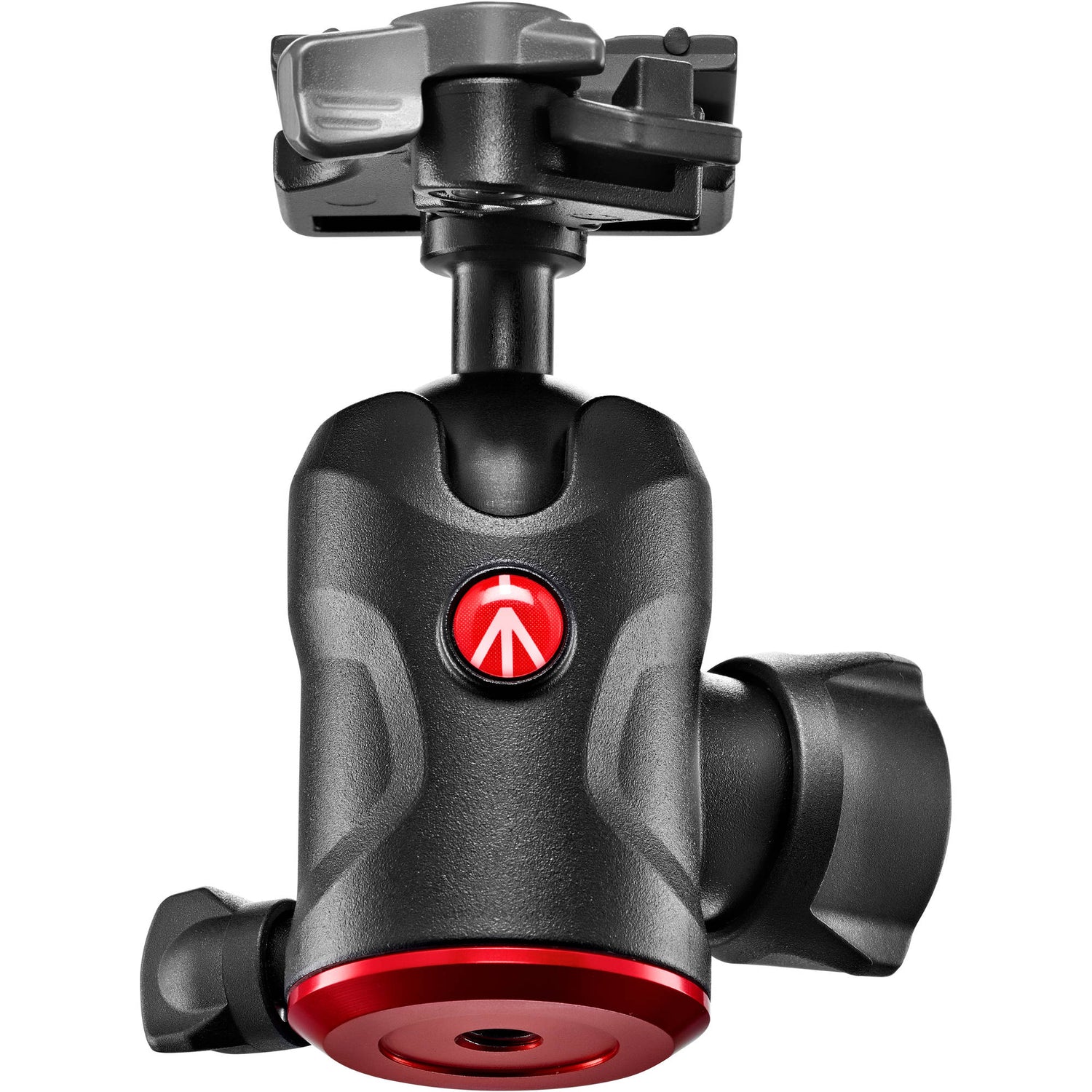

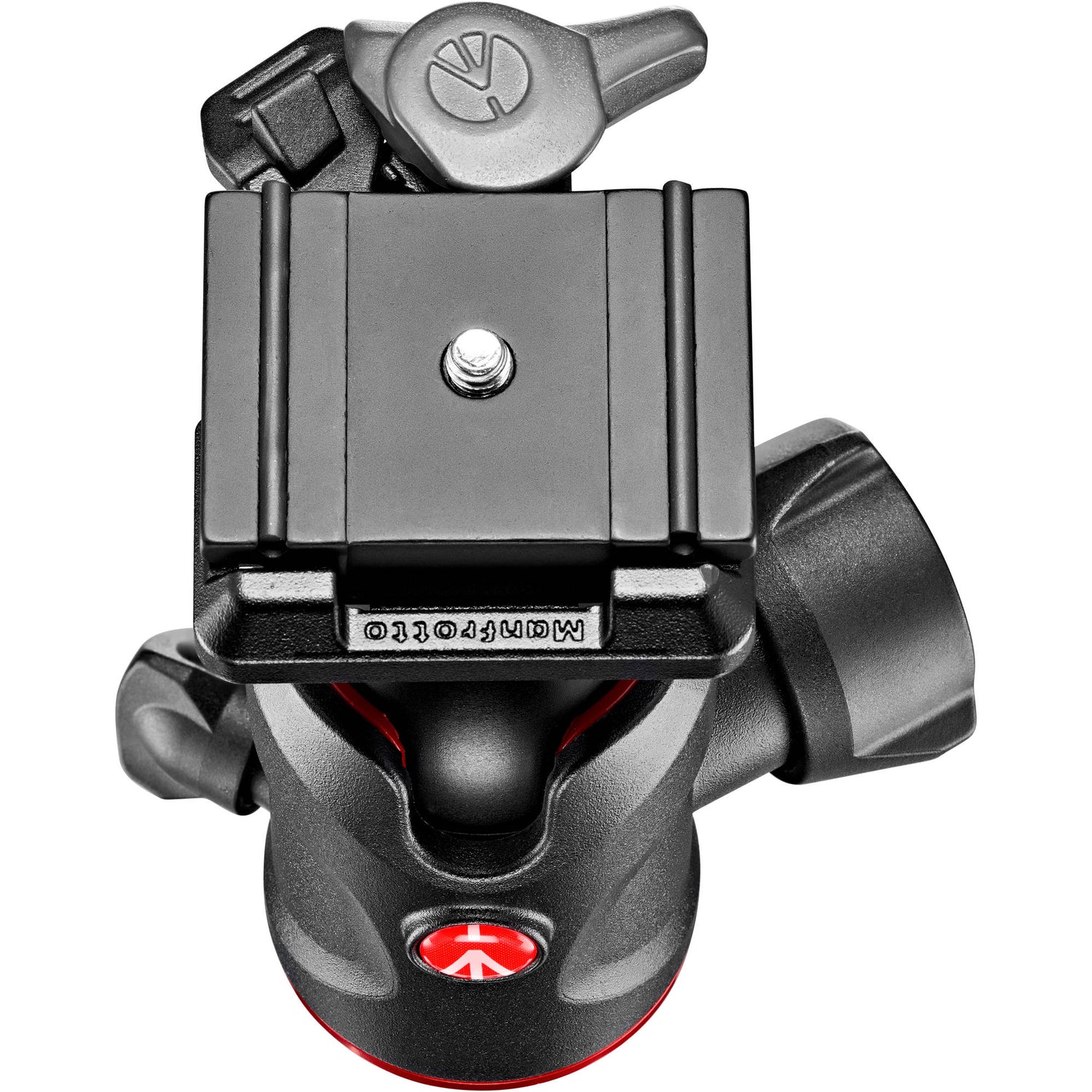

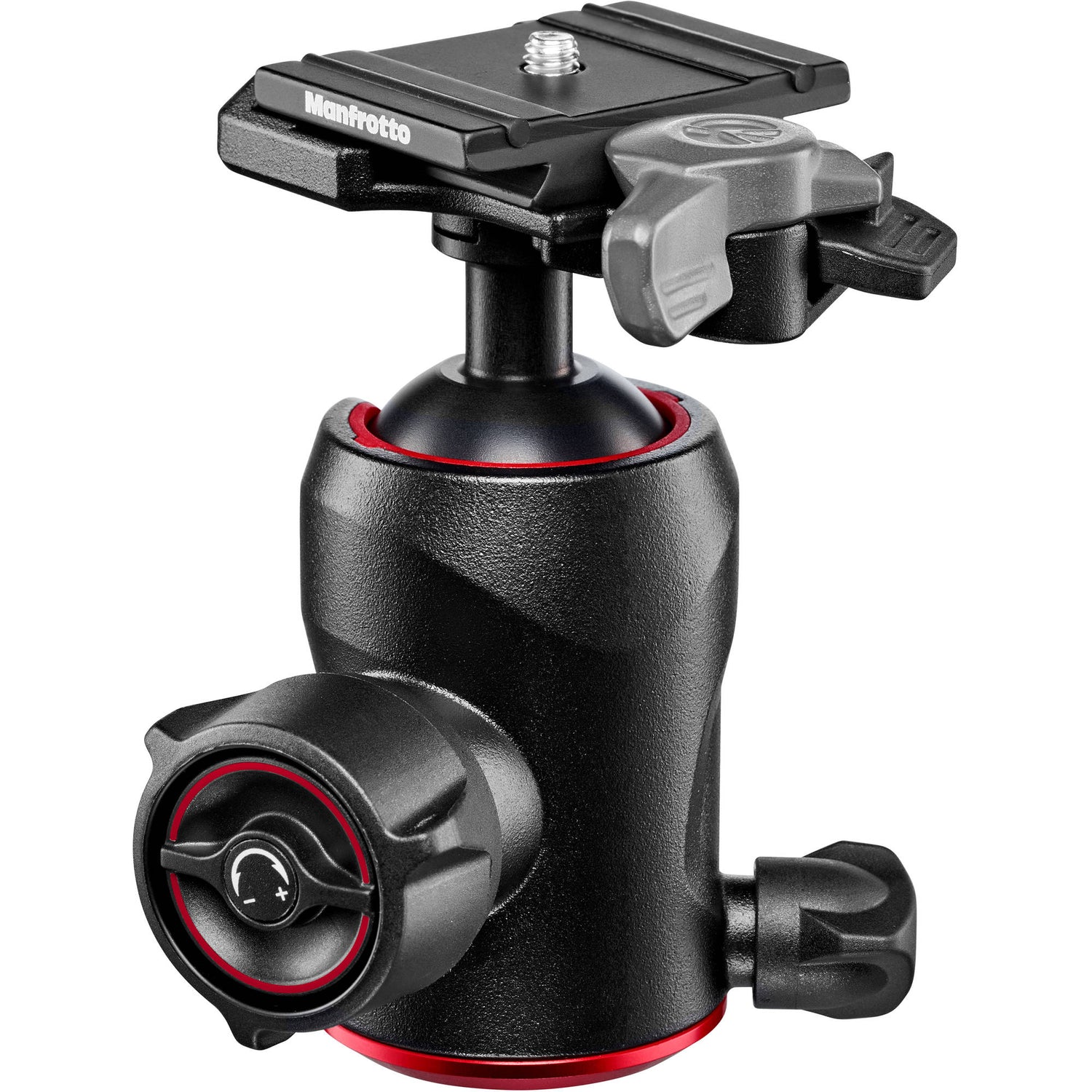

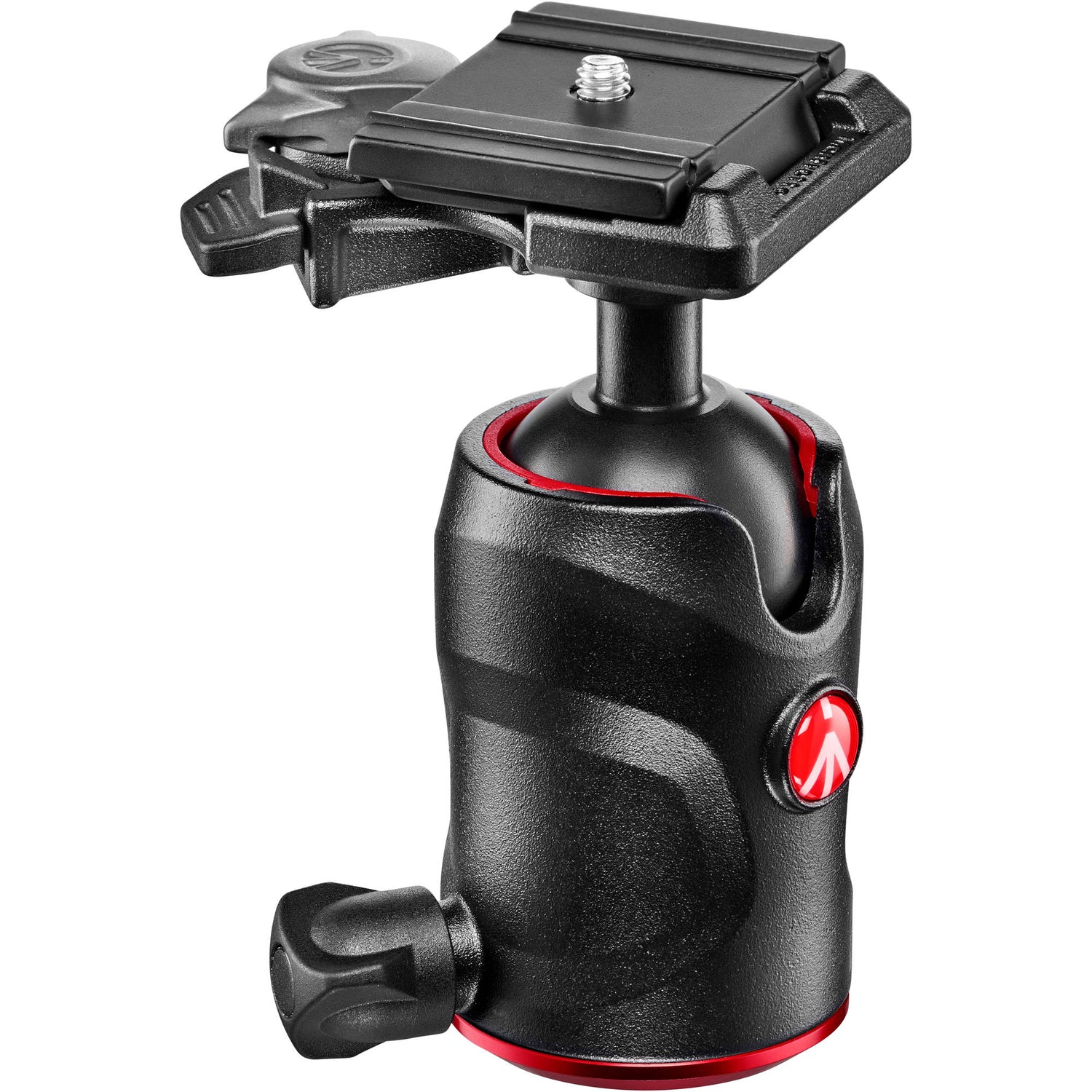

This Manfrotto 496 Center Ball Head features an integrated RC2 quick release cam lock and a 200PL-PRO Quick Release Plate. Compatible quick release plates can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a compatible quick release plate from accidentally disconnecting. The 496 Center Ball Head with 200PL-PRO Quick Release Plate has a load capacity of 22 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. By loosening the head's primary locking knob, the ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A recessed dial set within that locking knob can be rotated to apply tension control to the ball-and-socket joint's movements. Along the opposite side of the ball head, a secondary locking knob controls the ability to rotate the head 360°. Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the 200PL-PRO quick release plate, as well as 3/8"-16 threads via an included bushing adapter. The plate is also compatible with separately available tripod heads that feature an Arca-type clamp.
Manfrotto 496Â Specs
General
Head Type |
Ball Head |
Base Mount |
3/8"-16 Female |
Camera Mounting Screw |
1/4"-20 Male & 3/8"-16 with Bushing |
Quick Release Plate Type |
Arca-Type, RC2 |
Load Capacity |
22Â lb / 9.98Â kg |
Number of Bubble Levels |
None |
Friction Control |
Yes |
Independent Pan Lock |
Yes |
Material |
Aluminum |
Physical
Dimensions |
H: 4.5" / H: 11.5Â cm |
Weight |
14.1Â oz / 400Â g |
Packaging Info
Package Weight |
1.2 lb |
Box Dimensions (LxWxH) |
6 x 6 x 4" |
|
