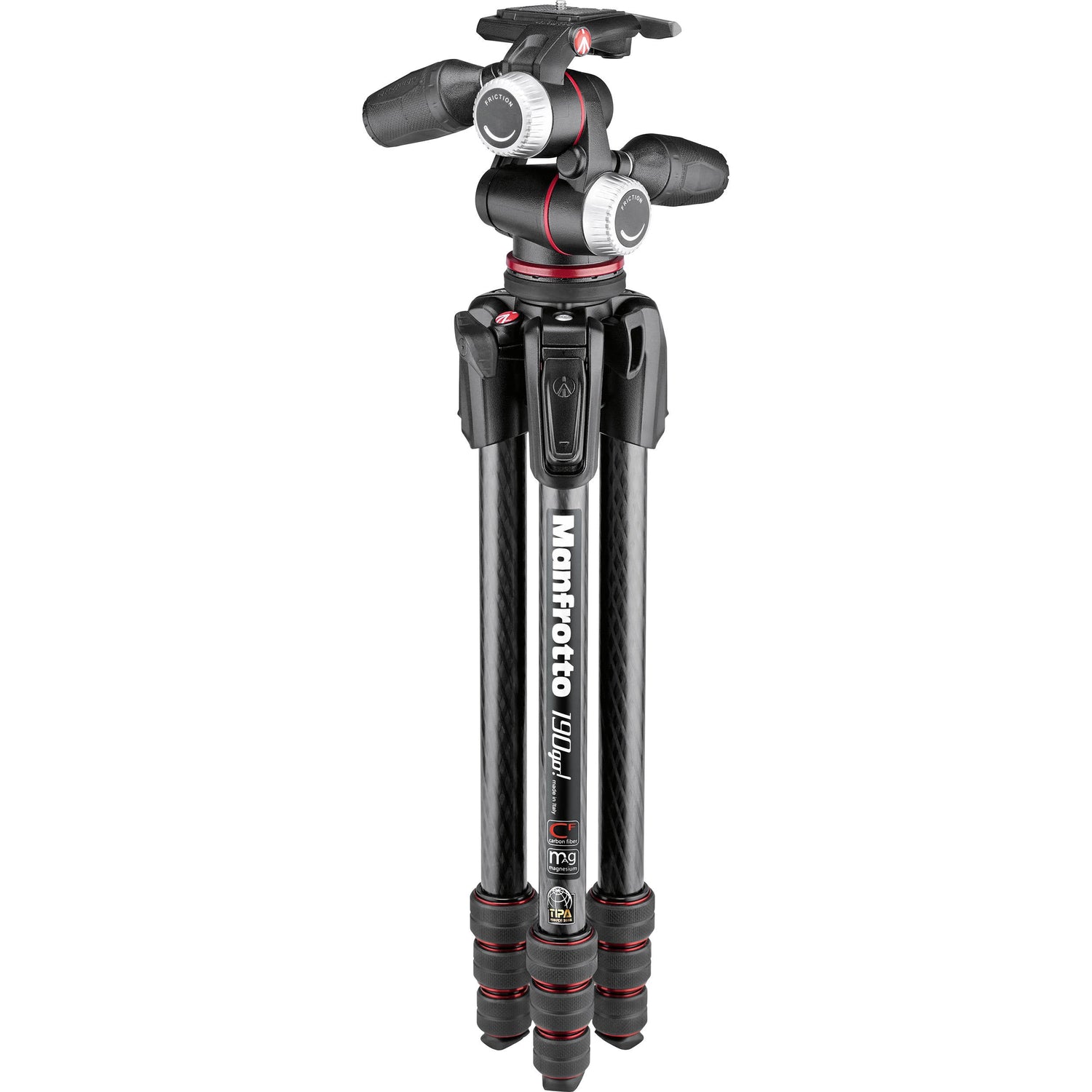

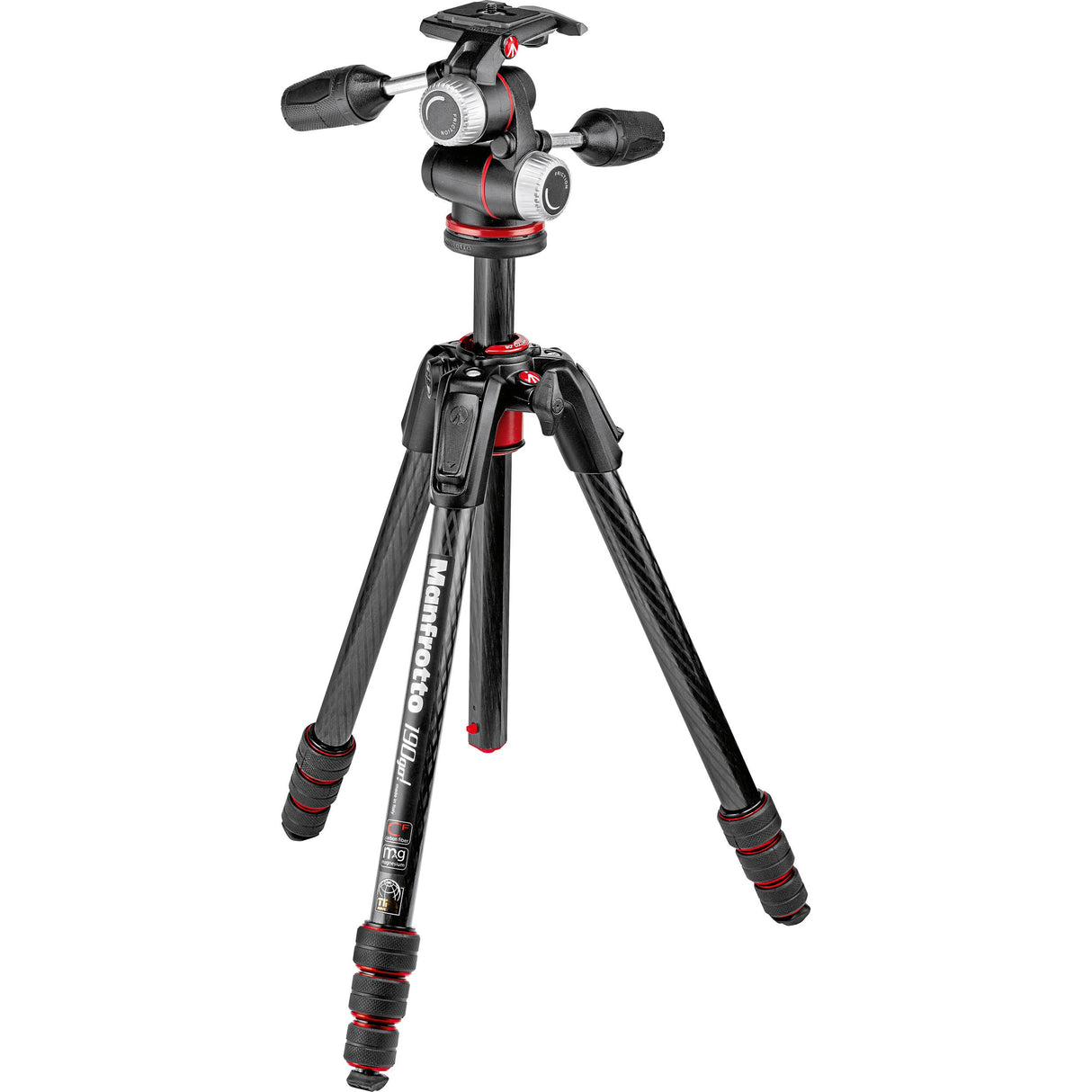

Set up quickly and be ready to shoot with the 190go! Carbon Fiber M-Series Tripod with MHXPRO-3W 3-Way Pan/Tilt Head Kit from Manfrotto The M-lock system allows you to rapidly lock or unlock the legs effortlessly. At the same time, the XPRO Pan/Tilt Head maintains your camera stable for creating sharp images. Manfrotto XPRO 3-Way, Pan-and-Tilt Head with 200PL-14 Quick Release Plate This XPRO 3-Way, Pan-and-Tilt Head from Manfrotto has a load capacity of 17.6 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting. Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate before securing it to the pan-and-tilt head. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other, have dedicated control handles, and can be locked into place. In addition to integrating the ability to individually lock the movements by twisting each corresponding handle's rubberized grip, the telescoping control handles for both tilt functions can also be retracted while the head is not in use for more convenient storage or transport. To promote fast and repeatable device positioning, this XPRO 3-Way, Pan-and-Tilt Head also includes a dedicated angle scale for rotational movements that is designed for easy visibility, as well as dedicated control knobs set under the telescoping control handles that can each be rotated to apply tension control to either the backwards and forwards, or sideways tilt movements at any time. XPRO 3-Way, Pan-and-Tilt Head 17.6 lb load capacity Compatible with tripods or support systems that feature a 3/8"-16 mount Can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation Rotation, backwards and forwards tilt, as well as portrait orientation tilt each function independently of each other, have dedicated control handles, and can be locked into place Telescoping control handles for both tilt functions can be retracted for more convenient storage or transport Dedicated angle scale for rotational movements that is designed for easy visibility helps promote fast and repeatable device positioning Integrated, RC2 quick release cam lock Two bubble levels for landscape orientations and one bubble level for portrait orientations Durable, aluminum-alloy construction
Manfrotto XPRO 3-Way, Pan-And-Tilt Head With 200PL-14 Quick Release Plate Specs
General
Head Type |
Pan & Tilt Head |
Base Mount |
3/8"-16 Thread |
Camera Mounting Screw |
1/4"-20 Male |
Quick Release Plate Type |
200PL-14 |
Load Capacity |
17.6Â lb / 7.98Â kg |
Number of Bubble Levels |
3 |
Material |
Aluminum |
Pan & Tilt Range
Lateral Tilt |
-90° to +30° |
Vertical Tilt |
-30° to +90° |
Panning Range |
360° |
Physical
Dimensions |
H: 5.1" / H: 13.0Â cm |
Weight |
2.2Â lb / 998Â g |
Packaging Info
Package Weight |
2.82 lb |
Box Dimensions (LxWxH) |
6.5 x 6.4 x 6.2" |
Manfrotto 190go! Carbon Fiber M-Series Tripod Specs
General
Load Capacity |
15.43Â lb / 7Â kg |
Maximum Working Height |
57.9" / 147Â cm |
Max Height without Center Column |
48.43" / 123Â cm |
Minimum Working Height |
3.1" / 8Â cm |
Folded Length |
17.72" / 45Â cm |
Head Mount Type |
3/8"-16 Screw |
Weight |
2.98Â lb / 1.35Â kg |
Materials |
Carbon Fiber |
Legs
Leg Lock Type |
Twist Lock |
Leg Positions |
4 Positions |
Independent Leg Spread |
Yes |
Leg Sections |
4 |
Leg Diameter |
0.58" / 14.7Â mm 0.72" / 18.2Â mm 0.85" / 21.7Â mm 1.00" / 25.3Â mm |
Feet Features |
Rubber |
Center Column
Center Column Shape |
Round |
Center Column Sections |
1 |
Center Column Extension Type |
Rapid |
Lateral / 90-Degree Center Column |
Yes |
Center Column Rotation |
90° |
Packaging Info
Package Weight |
3.6 lb |
Box Dimensions (LxWxH) |
22 x 5 x 5" |
|
