BOYA  |  SKU: PVMS22926  |  UPC/GTIN : 6971008023565

BOYA TX8 Pro Dual-Channel Wireless Bodypack Transmitter Unit with Omnidirectional Lavalier Mic for The by-WM8 PRO Wireless Lavalier Microphone System

Rs. 5,795.00 Rs. 9,999.00

Offers

  • Get GST invoice and save up to 28% on business purchases.
  • EMI option available.

Delivery and Shipping

USUALLY SHIPS IN 24 HOURS

Pickup

Pickup also available at PhotoVatika Head Office.

Usually ready in 4 hours.

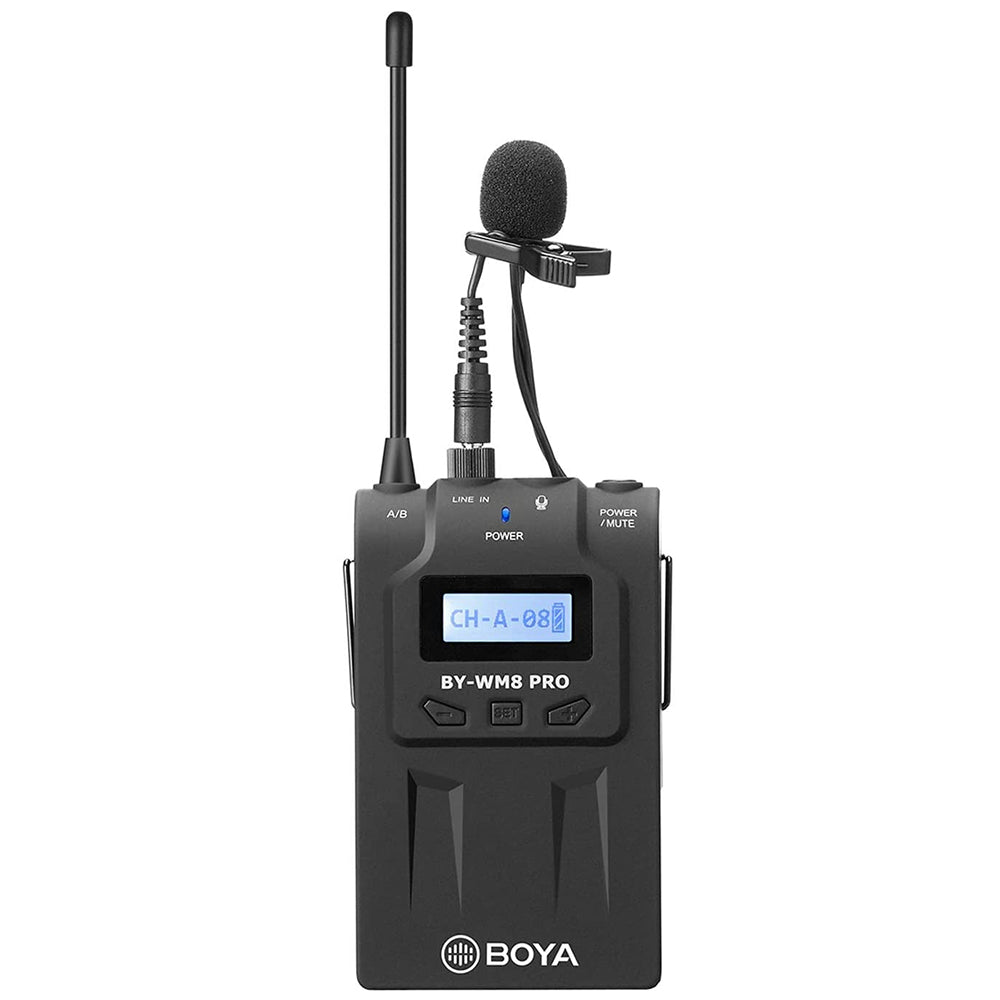

The BOYA TX8 Pro is a Digital Wireless Bodypack Transmitter with Lavalier Microphone, compatible with RX8 Pro and SP-RX8 Pro ( Receiver sold separately).

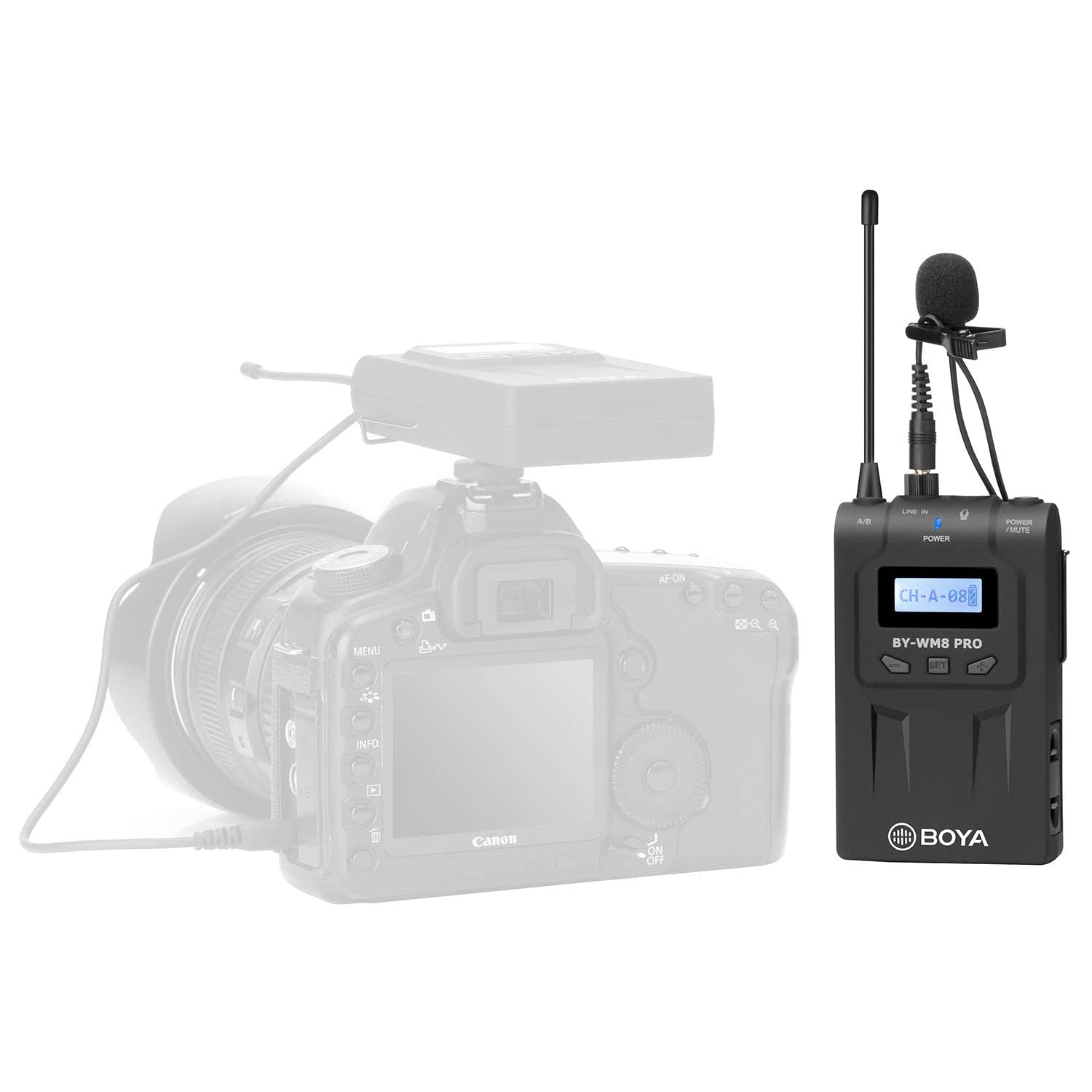

It features an easy to read LCD display, a wide switching RF bandwidth, one Mic input and one Line input, and digital circuitry, rugged lightweight plastic housing, and it's suitable for DSLR cameras for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.

The unit features a MIC and LINE IN switch for standard wired microphone or line-level sources with adjustable attenuation.

The unit comes with an omnidirectional electret condenser lavalier microphone, a windscreen for the microphone, a microphone holder clip, and a belt clip.

• 48-Channel for supporting for more than two systems simultaneously
• UHF frequencies for interference-free reception
• 40 MHz bandwidth
• Equipped with a muting function
• Enables switching between MIC and LINE IN input sources

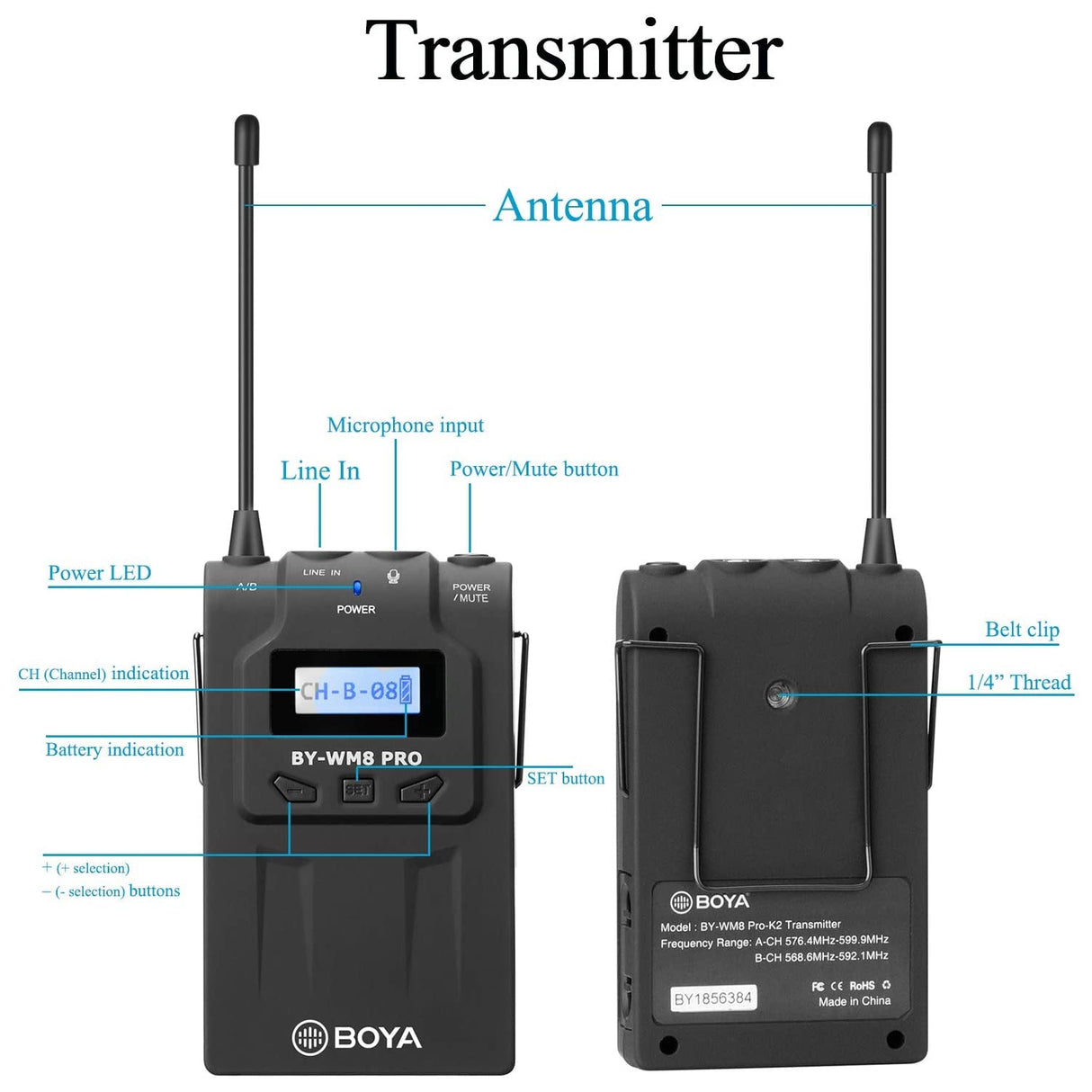

• Features a comprehensive LED display providing channel information, battery life
• Locked-plug Prevents Accidental Adjustment
• Includes Lavalier Microphone

BOYA TX8 PRO Features
UHF transmission with 48 channels
A or B channel group for selection
Wireless Microphone Transmitter
Includes omnidirectional Lavalier Mic
Compatible with RX8 Pro and SP-RX8 Pro
OLED Display

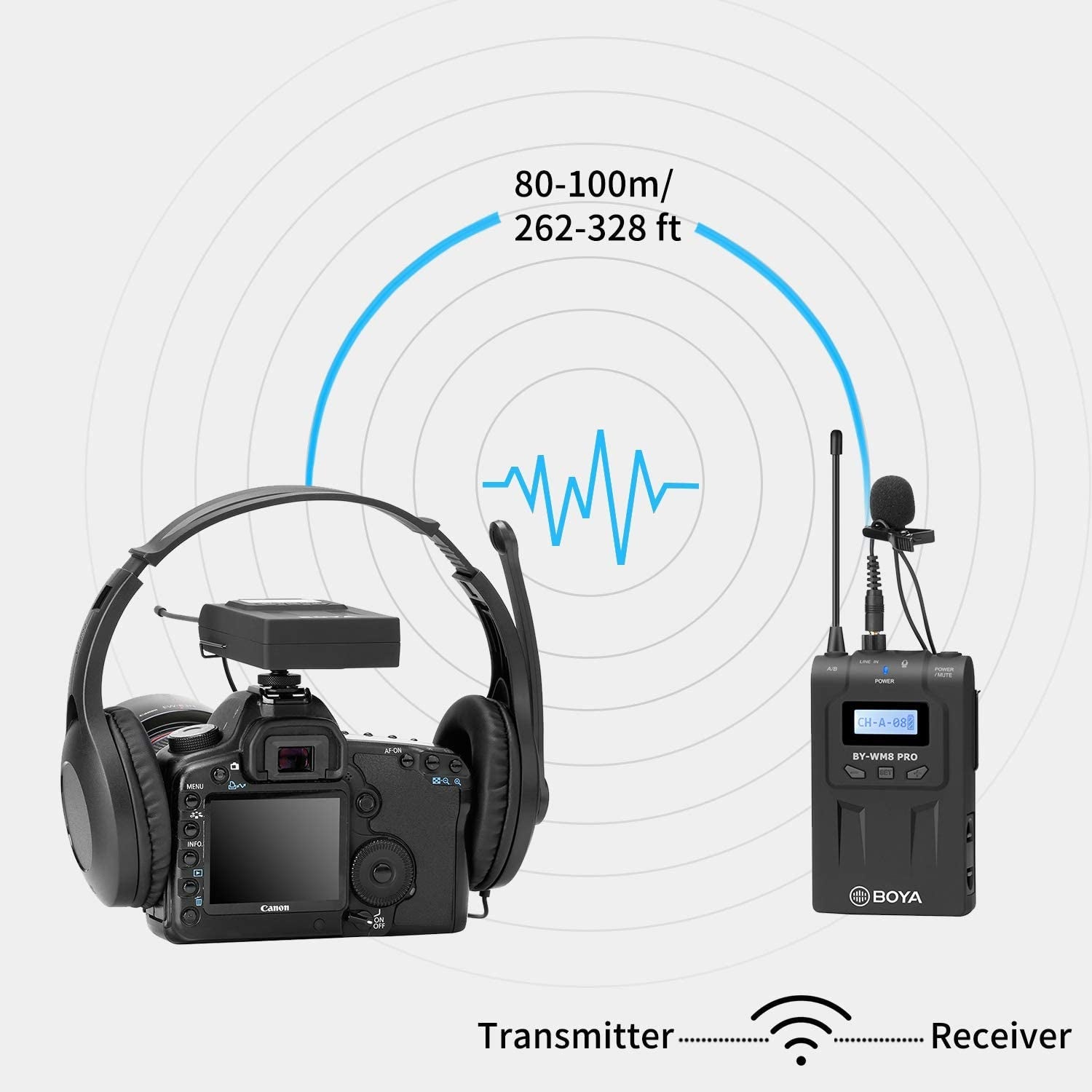

Operation range can reach up to 100m

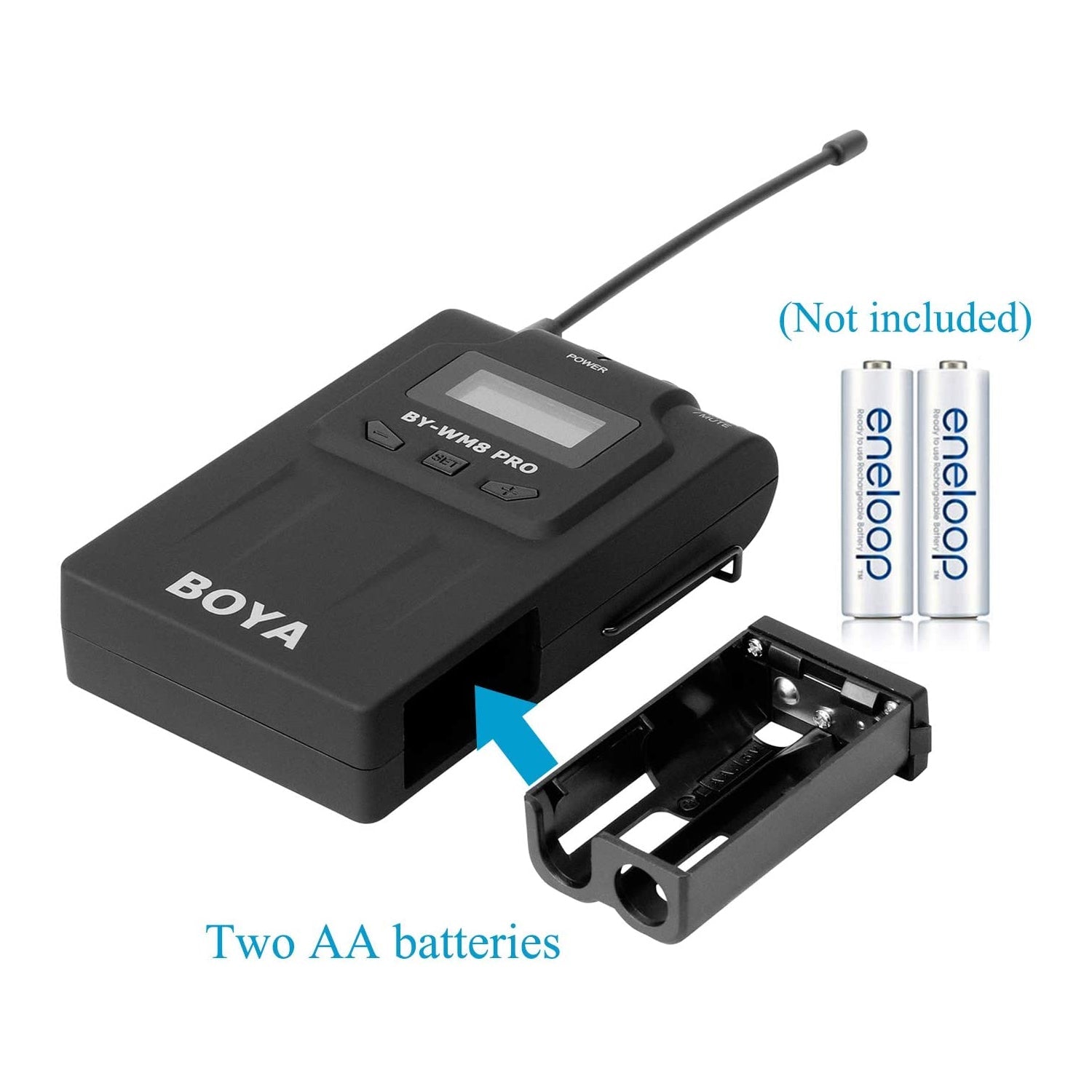

Powered by one Two AA Batteries
One Mic input and one Line Input



Specifications
Oscillator type:

PLL Synthesized Control Oscillator

Carrier Frequency Range:

556.71 MHz-575.98 MHz (Transmitter: A )
576.39 MHz-595.66MHz (Transmitter: B )

Channels:

48

Frequency response:

40 Hz to 18 kHz (+/-3dB)

Operation range:

100m (300')(without obstacle)

RF output power

≤10mW

Antenna:

1/4λ wire antenna

Spurious emission

250nW or less

Audio input connector

3.5mm mini jack

Reference Audio input level:

-60dBV(MIC input,0 dB attenuation)

Reference deviation

±5kHz(-60 dBV,1 kHz input)

Input frequency range

20Hz-20KHZ

Distortion

0.5% or less

Power supply

Two AA size batteries

Operation time:

About 6 hours

Dimensions:

208(H) × 67(W) × 29(L)mm

Weight:

90g without batteries
