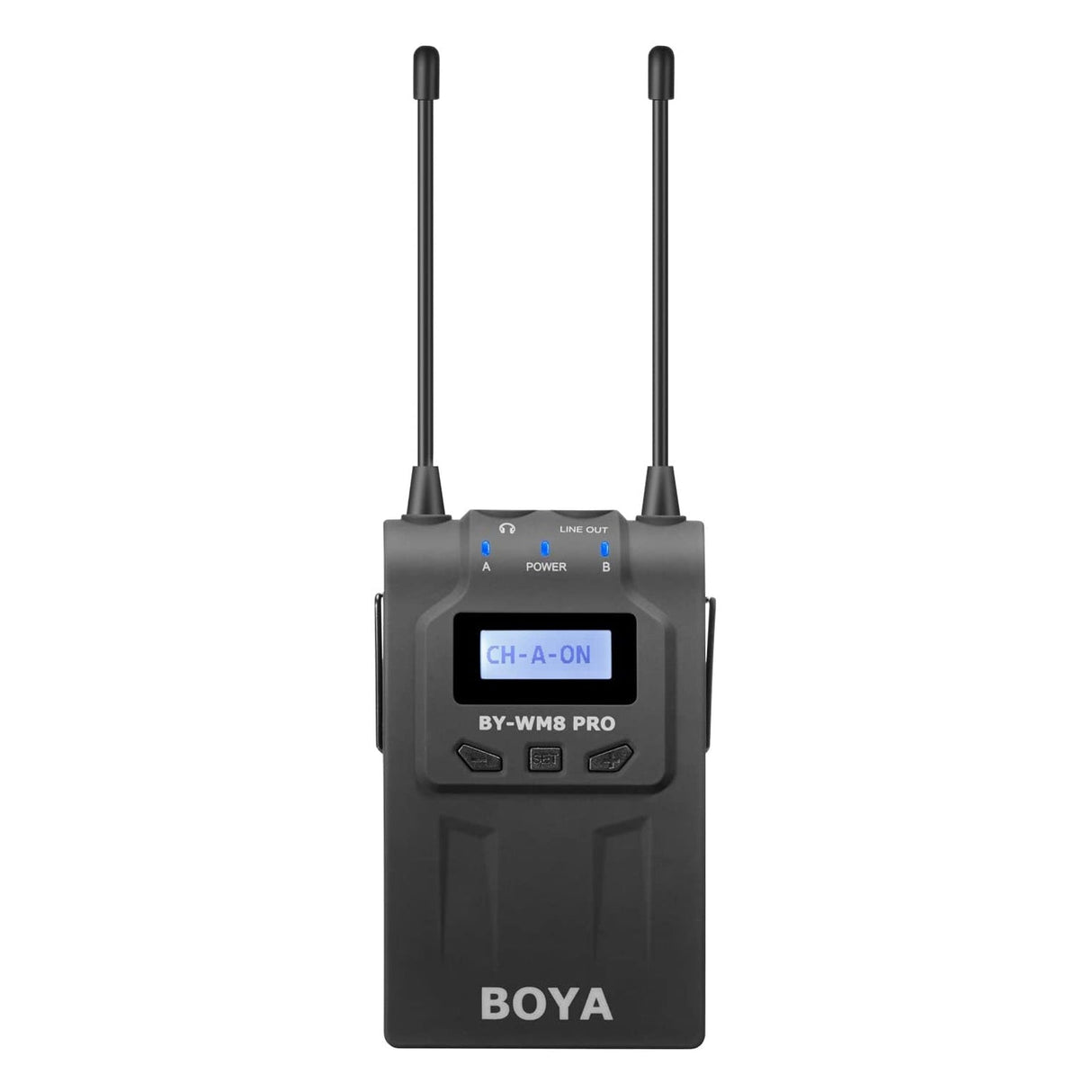

BOYA RX8 Pro UHF Dual-Channel Wireless Bodypack Receiver for TX8 Pro, BY-WHM8 Pro and BY-WXLR8 Pro Transmitter

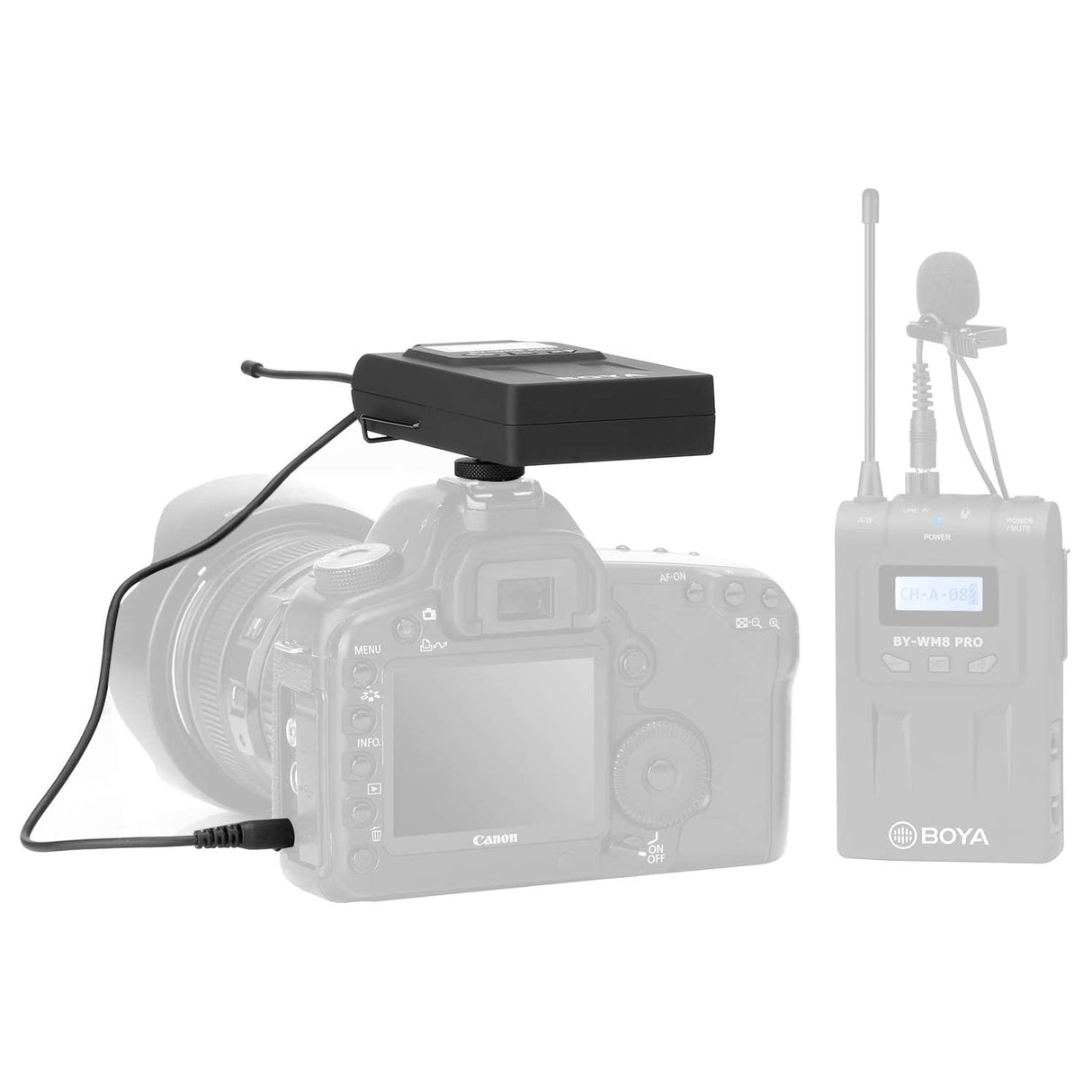

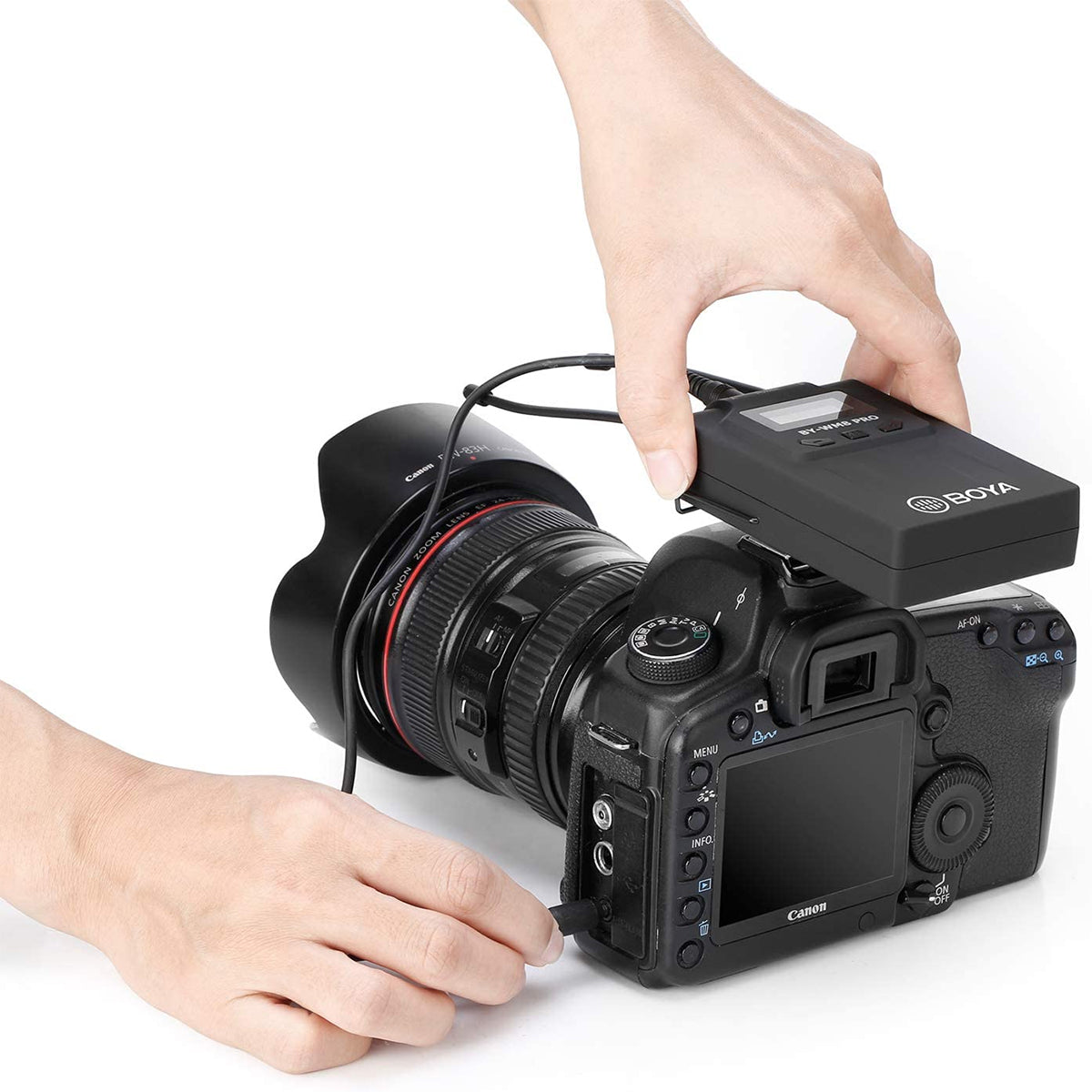

The BOYA RX8 Pro is a compact and rugged beltpack audio receiver. With two channels design, it can work with two transmitters simultaneously, it's compatible with BOYA TX8 Pro, BY-WHM8 Pro and BY-WXLR8 Pro (Transmitter sold separately). Adjustable the volume and two-mode (MONO, Stereo), it can be used in various environments for audio applications such as live stage, theater, houses of worship, and more. For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable. An optional stereo to dual XLR cable is available for connecting to a professional camera. The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder.

The beltpack can be wirelessly synced with the transmitter for quick setup,and also offers simple menu operation with an illuminated graphic display for more control options.

• UHF frequencies for interference-free operation
• Dual-Channel
• User-friendly menu for simple operation
• Operates on 2 AA batteries
• Includes 3.5mm locked-plug audio cable
• A 3.5mm headphone jack for real-time monitoring
• Includes shoe mount
• Compact and rugged lightweight plastic housing

BOYA RX8 PRO Features
UHF Receiver with 48 channels
Dual-Channel Receiver
Wirelessly syncs with transmitter for easy setup

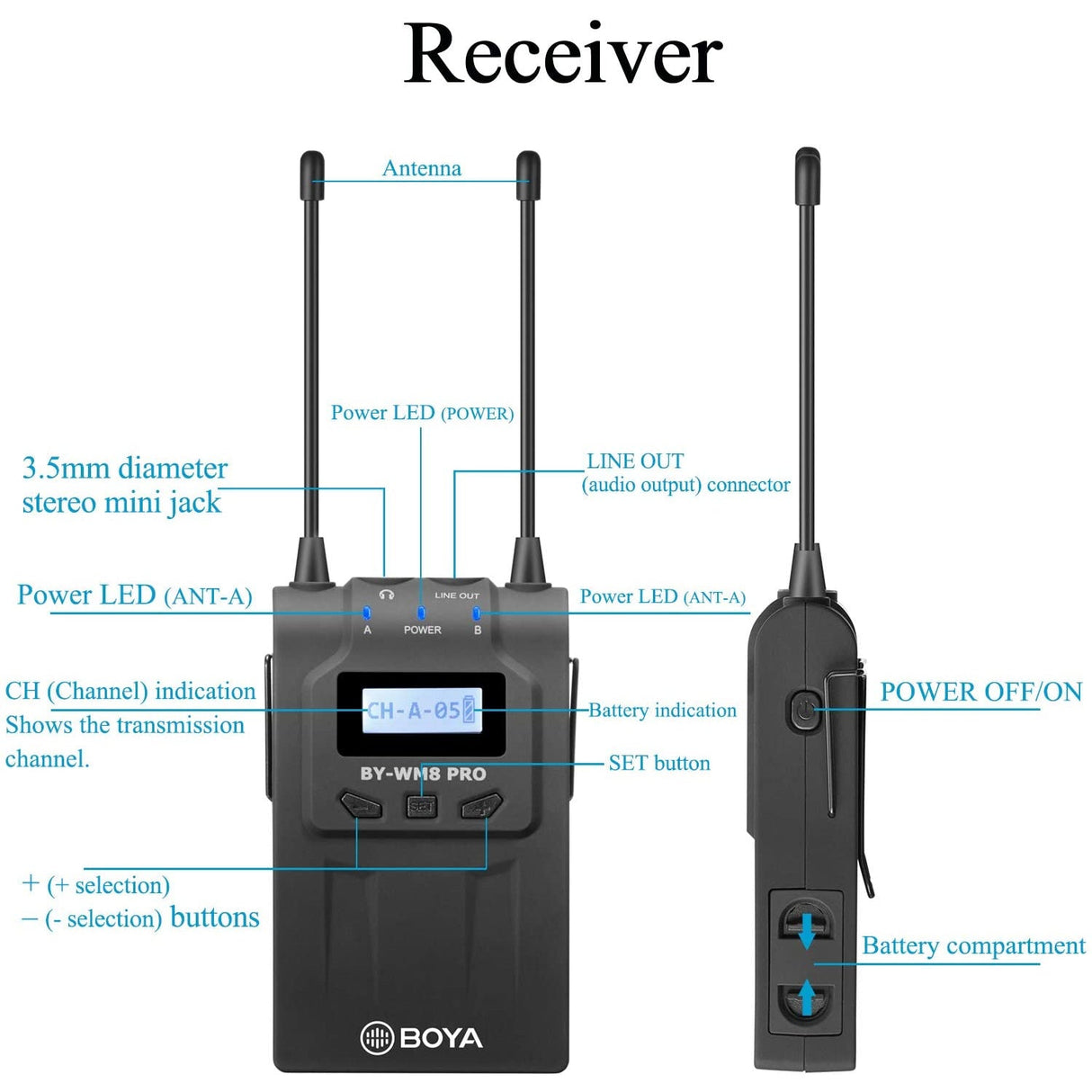

OLED Display
Adjustable MONO and Stereo mode

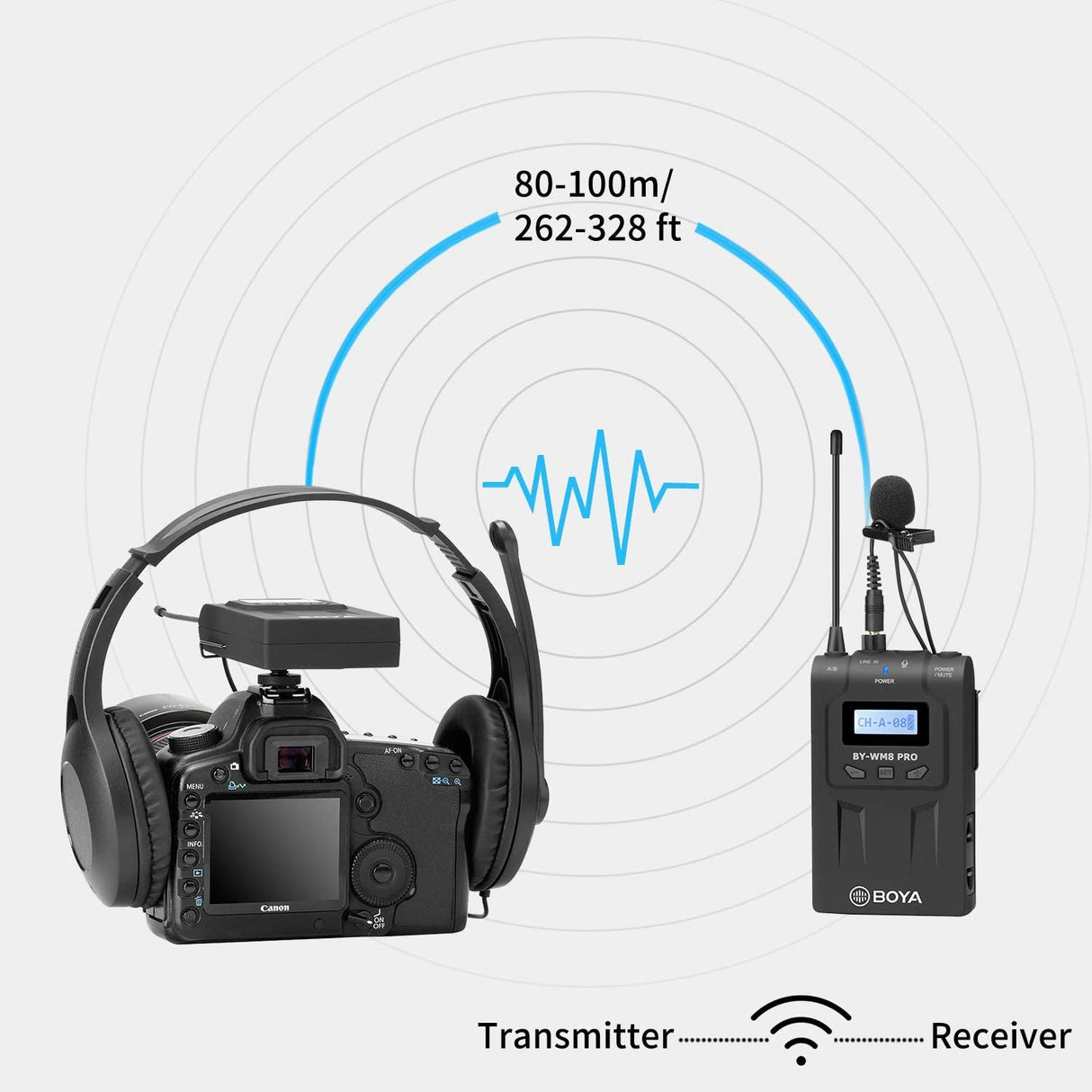

Operation range can reach up to 100m
Powered by one Two AA Batteries
Includes 3.5mm locked-plug audio cable.
Includes shoe mount
Wide frequency coverage
Headphone output








Specifications
Wireless Technology

Analog UHF

Number of RF Channel Frequencies

48

Diversity

Non-Diversity

RF Frequency Band

556.71 to 575.98 MHz
576.39 to 595.66 MHz

RF Channel Scanning

Manual

Max Operating Range

300' / 91.4 m (Line of Sight)

Receiver Type

Camera-Mount

Mounting Options

Shoe-Mount

Antenna

2 x 1/4 Wave Wire, Fixed (Top-Mount)

Number of Audio Channels

2

Audio I/O

1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output

Audio Output Level

-60 dBV

Frequency Response

40 Hz to 18 kHz

Power Requirements

Battery

Battery Type

2 x AA

Display & Indicators

3 x LED (Power)
1 x LCD (Battery Status, Channel)

Housing

Plastic

Operating Temperature

14 to 122°F / -10 to 50°C

Storage Temperature

14 to 131°F / -10 to 55°C

Dimensions

2.6 x 8.2 x 1.1" / 67 x 208 x 29 mm

Weight

3.2 oz / 90 g (without Batteries)
