BOYA | SKU:
PVMS18358

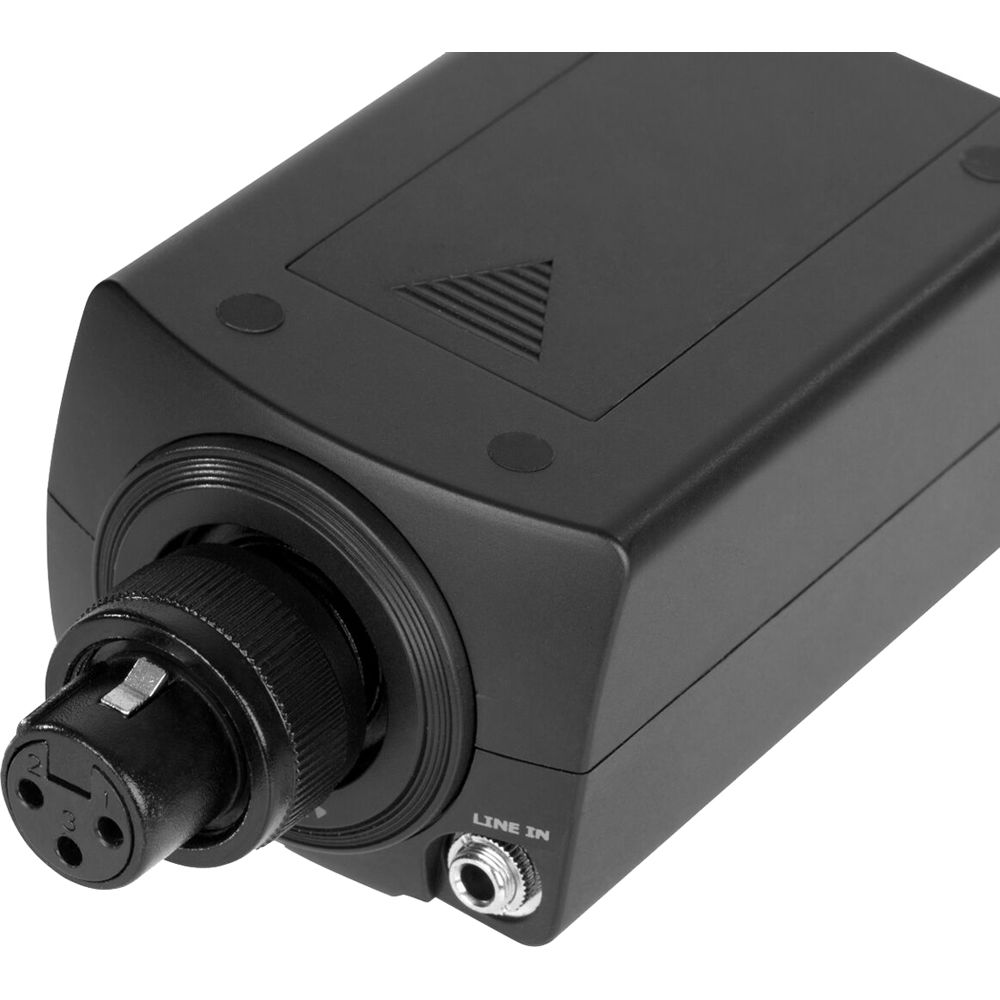

BOYA BY-WXLR8 PRO XLR Transmitter for BY-WM8 Pro System
Rs. 6,495.00
Rs. 19,995.00
Unit price
/
Unavailable
BOYA BY-WXLR8 PRO XLR Transmitter for BY-WM8 Pro System is backordered and will ship as soon as it is back in stock.
Offers
Offers
- Get GST invoice and save up to 28% on business purchases.
- EMI option available.
Delivery and Shipping
Delivery and Shipping
USUALLY SHIPS IN 24 HOURS
Pickup
Pickup
Pickup also available at PhotoVatika Head Office.
Usually ready in 4 hours.

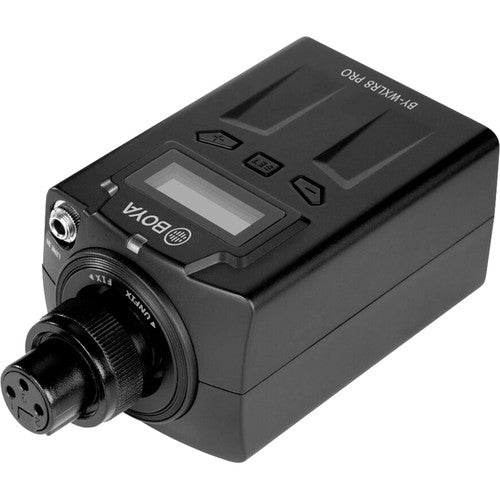

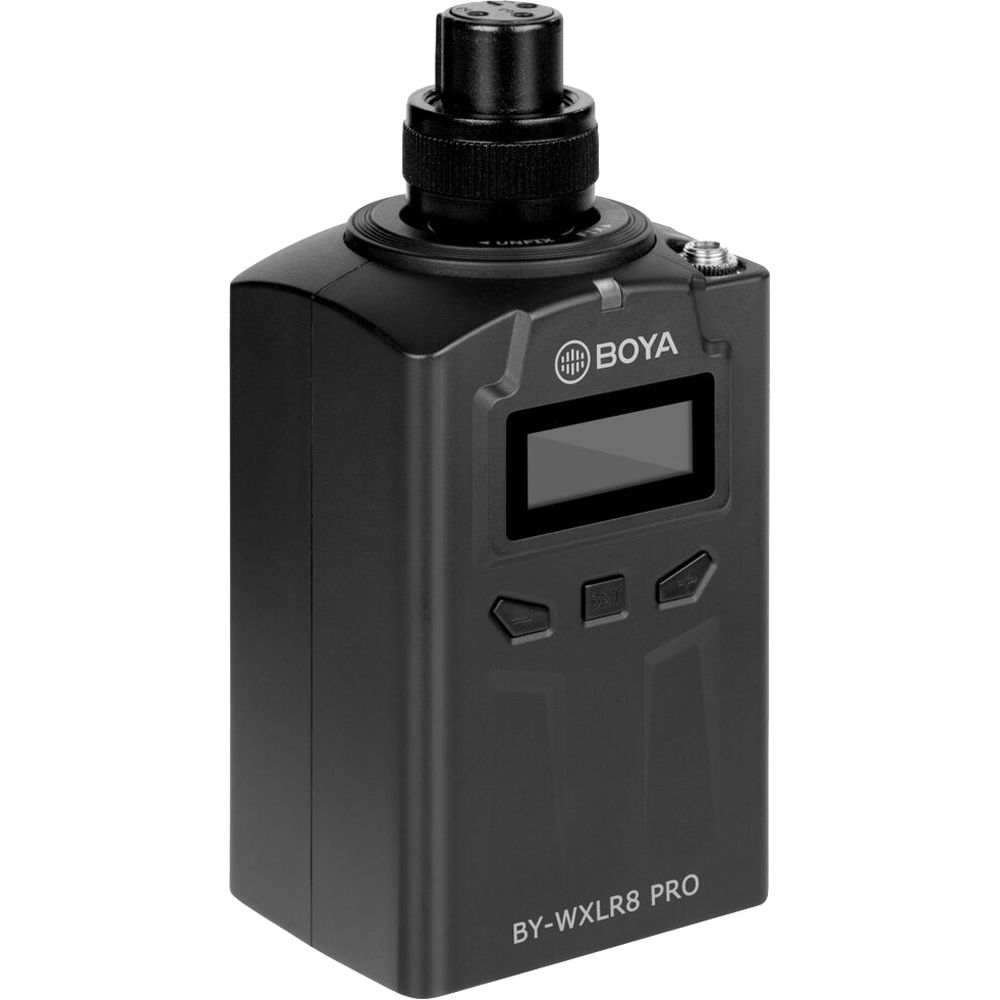

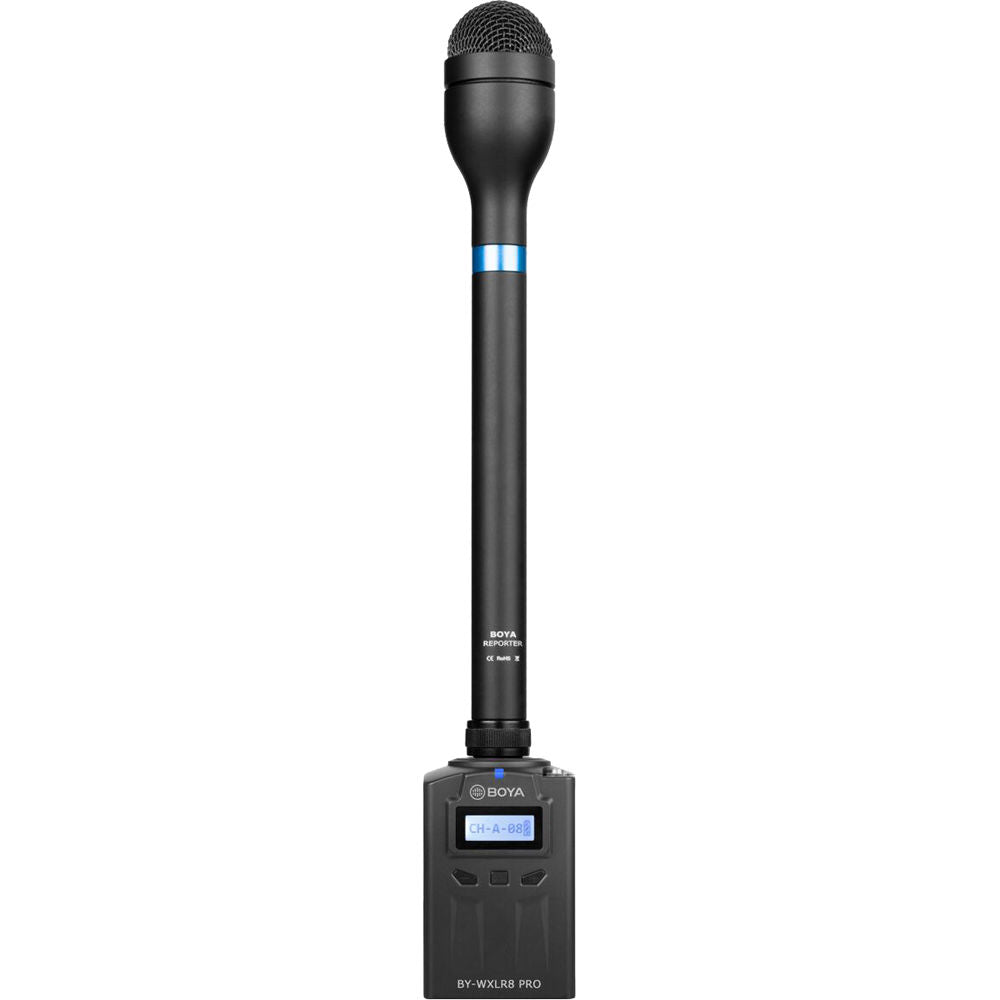

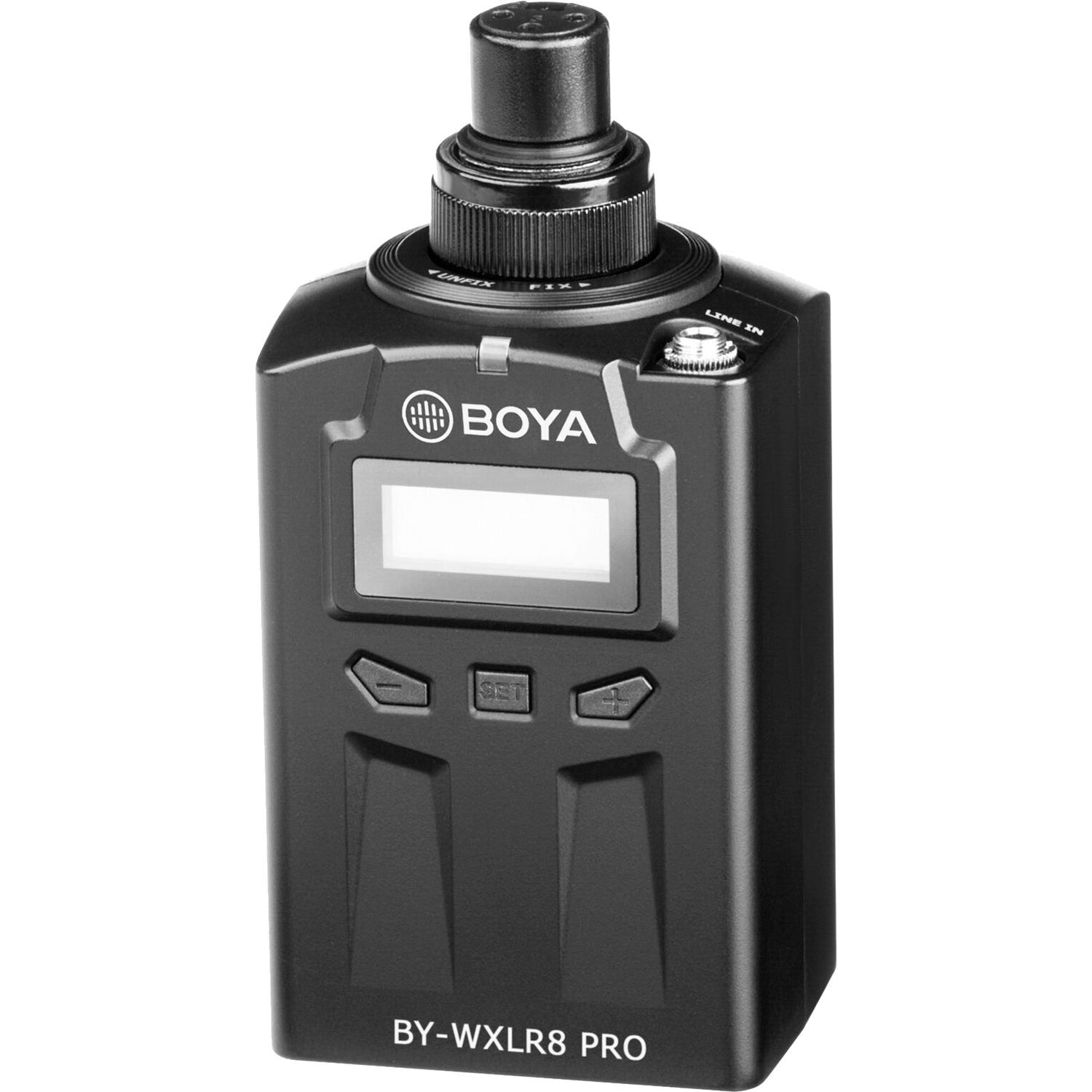

The BY-WXLR8 Pro Plug-On XLR Transmitter is designed for BOYA RX8 Pro and SP-RX8 Pro UHF Wireless Microphone.

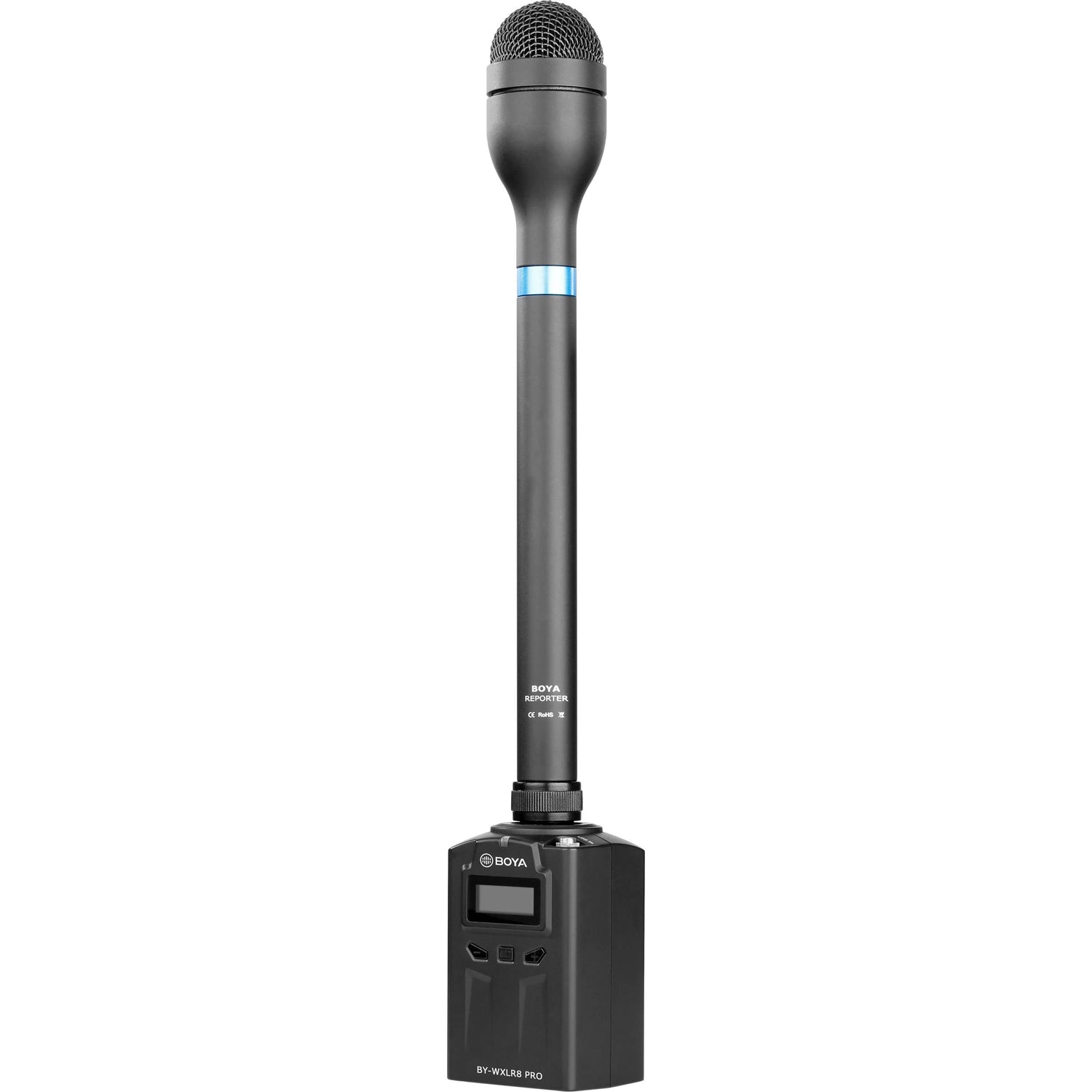

It allows you to connect any XLR dynamic micrphones or battery-powered XLR condenser microphones with RX8 Pro and SP-RX8 Pro wireless receiver.
It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line inputs, and digital circuitry, rugged lightweight housing,
and it’s suitable for DSLR cameras, video cameras, or audio recorders for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.
- UHF frequencies for interference-free reception
- It features an OLED display with information on level, battery status, mute, and channel selection.
- 24 MHz bandwidth

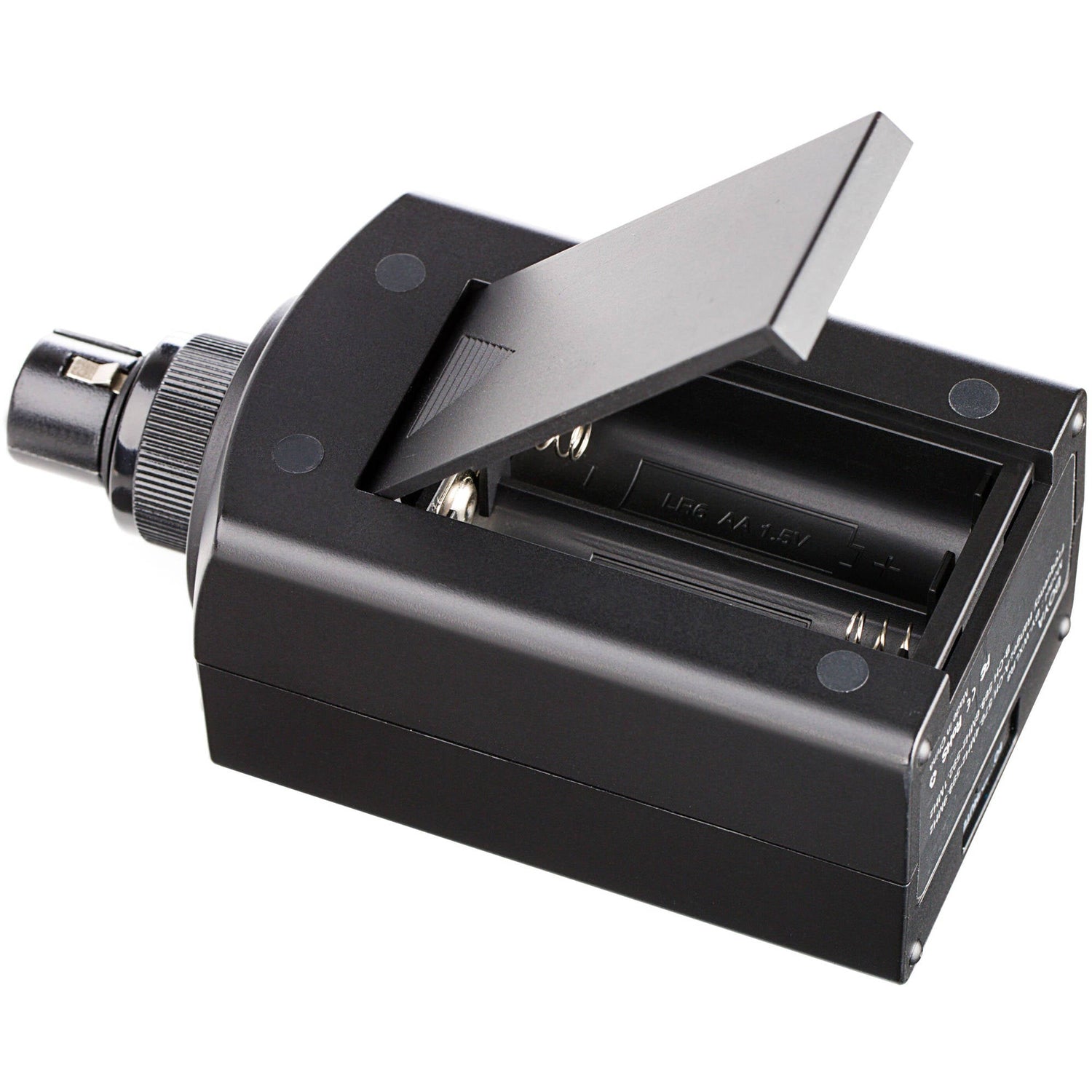

- Power the transmitter via AA batteries, rechargeable NiMH batteries.
- The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
- Compatible with RX8 Pro and SP-RX8 Pro
- User-friendly menu operation with more control options
Specifications
Channel group: A or B
Carrier Frequency Range:
556.71 MHz-575.98 MHz (Transmitter A)
576.39 MHz-595.66 MHz (Transmitter B)
Channels: 48
RF output power:
≤10 mW

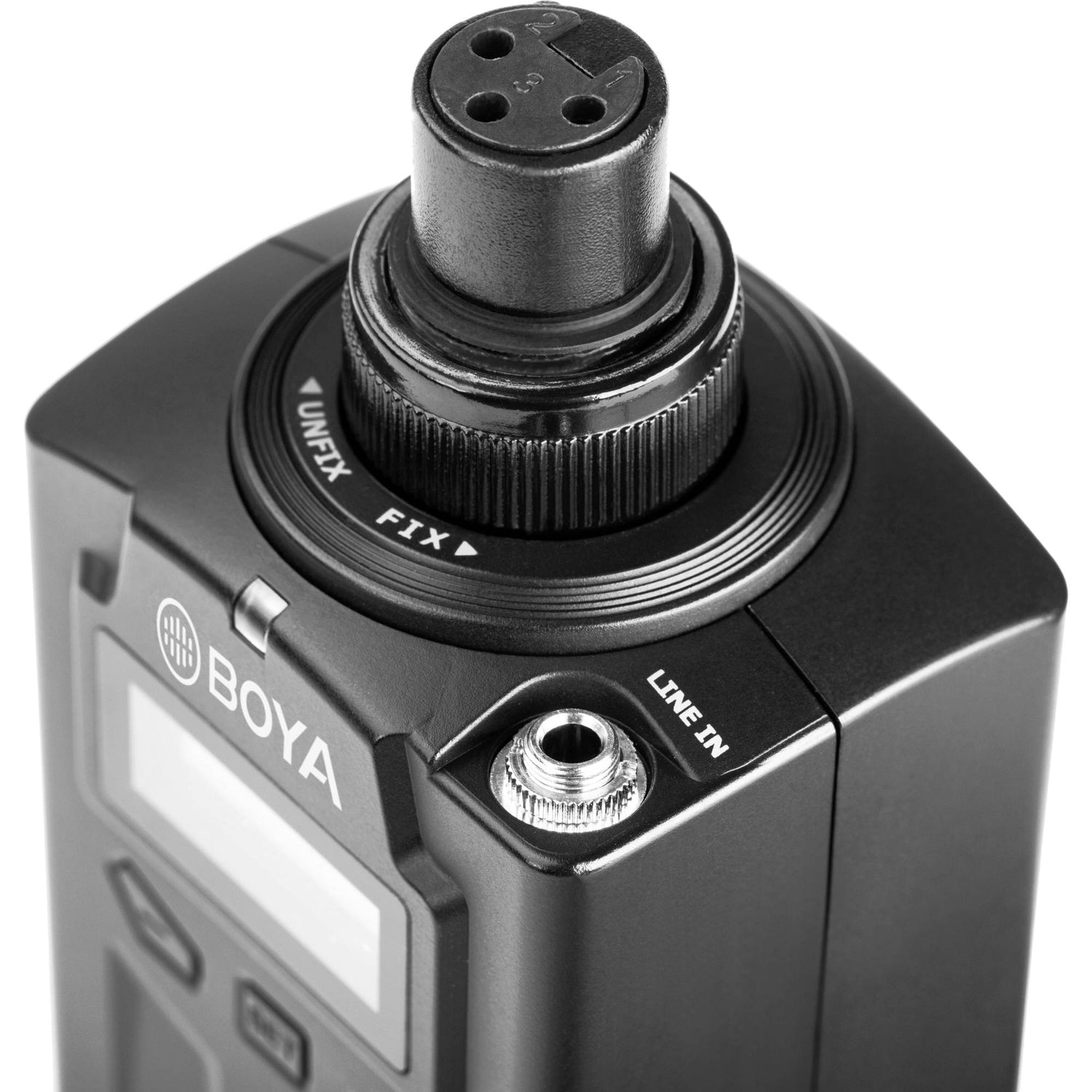

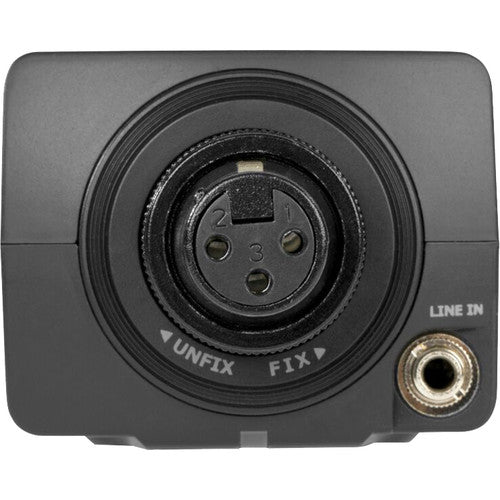

Audio input connector: XLR
Spurious emission: 250nW or less
Reference deviation: ±5 kHz (–60 dBV, 1 kHz input)
Input frequency range: 20Hz-20KHz
Distortion: 0.5% or less
Dimensions: 5.7x4.55x11.7cm
Weight: 162g (without batteries)
It allows you to connect any XLR dynamic micrphones or battery-powered XLR condenser microphones with RX8 Pro and SP-RX8 Pro wireless receiver.
It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line inputs, and digital circuitry, rugged lightweight housing,
and it’s suitable for DSLR cameras, video cameras, or audio recorders for videography, field recording, broadcast TV, and electronic news gathering (ENG) applications.
- UHF frequencies for interference-free reception
- It features an OLED display with information on level, battery status, mute, and channel selection.
- 24 MHz bandwidth
- Power the transmitter via AA batteries, rechargeable NiMH batteries.
- The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
- Compatible with RX8 Pro and SP-RX8 Pro
- User-friendly menu operation with more control options
Specifications
Channel group: A or B
Carrier Frequency Range:
556.71 MHz-575.98 MHz (Transmitter A)
576.39 MHz-595.66 MHz (Transmitter B)
Channels: 48
RF output power:
≤10 mW
Audio input connector: XLR
Spurious emission: 250nW or less
Reference deviation: ±5 kHz (–60 dBV, 1 kHz input)
Input frequency range: 20Hz-20KHz
Distortion: 0.5% or less
Dimensions: 5.7x4.55x11.7cm
Weight: 162g (without batteries)
