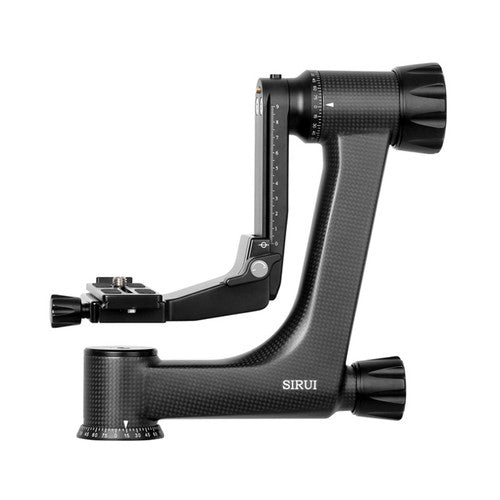

Sirui PH-30 Carbon Fiber Gimbal Head

The 9.8" tall Sirui PH-30 Carbon Fiber Gimbal Head can tilt and rotate a camera and a large telephoto lens that weighs up to 55.1 lb with ease and smoothness, so it can track fast-moving subjects such as in sports or bird photography. Moreover, the head tilts from -60 to 150° and pans a full 360°, while the platform adjusts 90° in height. Both the tilt and the rotation can lock into place via the tilt's locking knob and the independent pan locking knob.The 3.1 lb gimbal head is made of an 8-layer carbon fiber weave, and the platform is constructed from a lightweight aluminum material. Additionally, the platform is Arca-type compatible, and it includes a quick release plate with both 1/4"-20 and 3/8"-16 camera mounting threads.

Gimbal head tilts -60° to +150° and pans 360°, while the platform adjusts 90° in height
The platform is Arca-type compatible, and the head has a load capacity of 55.1 lb
3.1 lb gimbal head with 8-layer carbon fiber and aluminum build
Locking knobs for both tilt and pan movements
Anti-twist lip on quick release plate with 1/4"-20 and 3/8"-16 camera screws
Sirui PH-30 Specs
General
Head Type Gimbal Head
Base Mount 3/8"-16 Thread
Camera Mounting Screw 1/4"-20 Male, 3/8"-16 Male
Quick Release Plate Type Arca-Type
Load Capacity 55.1 lb / 24.99 kg
Number of Bubble Level(s) None
Friction Control No
Independent Pan Lock Yes
Material Aluminum, Carbon Fiber
Pan & Tilt Range
Vertical Tilt -60° to +150°
Panning Range 360°
Physical
Dimensions H: 9.8 x W: 4.7 x L: 10.2" / H: 25.0 x W: 12.0 x L: 26.0 cm
Weight 3.1 lb / 1.4 kg
Packaging Info
Package Weight 5.225 lb
Box Dimensions (LxWxH) 14.6 x 14.4 x 5.15"In the box
Sirui PH-30 Carbon Fiber Gimbal Head
Quick Release Plate
