BOYA BY-XM6-S2 Digital Camera-Mount True-Wireless 2-Person Microphone System (2.4 GHz)
- For Video, Vlogging, YouTube, Instagram, etc.
- 2 x Omnidirectional Lavalier Mics,2 x Compact Clip-On Mic/Transmitters
- Compact Dual-Channel Receiver & Up to 328' Range
- Adjustable Gain, Headphone Monitoring and Easy-to-Use Plug & Play Operation
- 6.5 Hrs on Built-In Rechargeable Battery
- Product SKU: PVMS23629
- Category:Boya,MICROPHONES & ACCESSORIES,WIRELESS MICROPHONES
- Order within

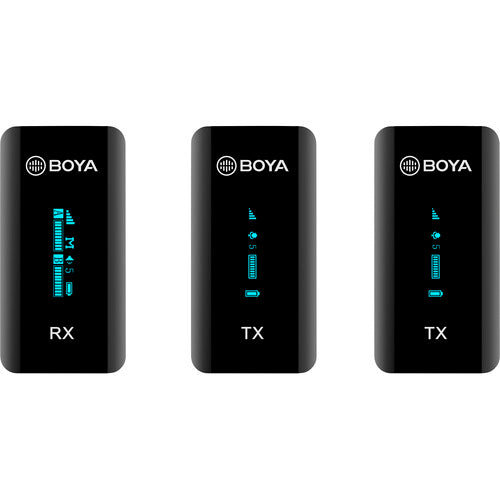

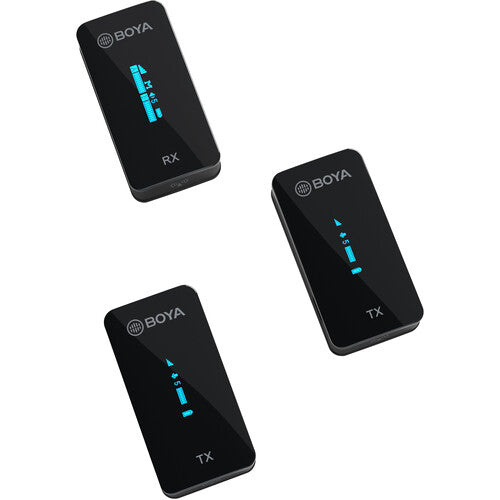

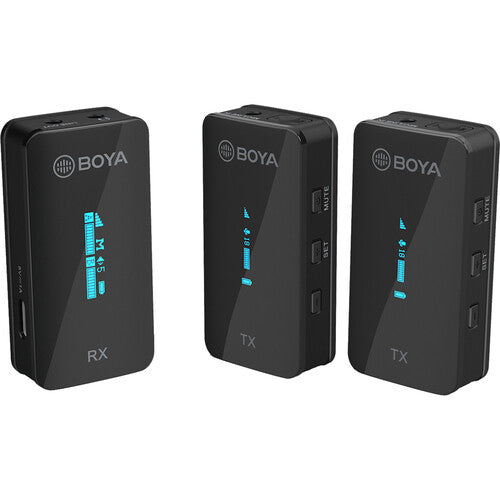

The BOYA BY-XM6-S2, a 2.4GHz dual-channel wireless microphone system, consists of two transmitters and one receiver. It’s a perfect sound capturing and delivering solution for two-person vlog, YouTube video, live streaming, interview, recording, etc. Advanced Technology for Stable Signal Transmission The BY-XM6 S2 series adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S2 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m (328ft). Professional Audio Capturing & Delivering Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S2 captures and delivers Hi-fi and low-noise audio. Ultra-versatile & Ease-to-use Wireless Microphone Kit With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN input jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work with your DSLR or mirrorless camera, smartphone and computer. When you record two sound sources simultaneously, BY-XM6 S2 will be your best choice. |
The BOYA BY-XM6-S2, a 2.4GHz dual-channel wireless microphone system, consists of two transmitters and one receiver. It’s a perfect sound capturing and delivering solution for two-person vlog, YouTube video, live streaming, interview, recording, etc. Advanced Technology for Stable Signal Transmission The BY-XM6 S2 series adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S2 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m (328ft). Professional Audio Capturing & Delivering Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S2 captures and delivers Hi-fi and low-noise audio. Ultra-versatile & Ease-to-use Wireless Microphone Kit With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN input jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work with your DSLR or mirrorless camera, smartphone and computer. When you record two sound sources simultaneously, BY-XM6 S2 will be your best choice. |
Wireless Technology |
Digital 2.4 GHz |
Included Transmitters |
2 x Clip-On with Microphone |
Diversity |
Non-Diversity |
RF Frequency Band |
2405 to 2478 MHz |
RF Channel Scanning |
Auto-Scan |
Max Operating Range |
328.1' / 100 m (Line of Sight) |
Max Transmitters per Band |
2 |
Built-In Recorder |
No |
Timecode Support |
No |
Control App Support |
No |
Encryption |
None |
Modulation |
GFSK |
Receiver Type |
Camera-Mount |
Mounting Options |
Belt Clip (with Included Hardware) |
Number of Audio Channels |
2 |
Audio I/O |
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output |
Network I/O |
None |
Word Clock I/O |
None |
USB/Lightning Connectivity |
1 x USB Type-C (Bus Power, Charging) |
Standalone Audio Interface Capable |
No |
Power Requirements |
Battery, Bus Power (USB) |
Battery Type |
1 x Built-In Rechargeable |
Approx. Battery Life |
6.5 Hours (Lithium Rechargeable) |
DC Input Power |
5 VDC |
Display & Indicators |
OLED (Battery Status, Level, Metering, Power, Sync, Transmitter Battery Status) |
Operating Temperature |
14 to 122°F / -10 to 50°C |
Storage Temperature |
-4 to 131°F / -20 to 55°C |
Dimensions |
1.3 x 2.4 x 0.7" / 32 x 62 x 17 mm |
Weight |
1.1 oz / 32 g |
Transmitter Type |
Clip-On with Microphone |
RF Output Power |
10 mW |
Audio I/O |
1 x 1/8" / 3.5 mm 3-Pin Female Input |
Included Cable Connector |
1/8" / 3.5 mm TRS |
Muting |
Off/On Switch |
Auto-Level Control |
No |
Frequency Response |
35 Hz to 18 kHz |
Antenna |
Internal |
Power Requirements |
Battery |
Battery Type |
1 x Built-In Rechargeable (Included) |
Approx. Battery Life |
7 Hours |
USB/Lightning Connectivity |
1 x USB Type-C (Charging) |
Display & Indicators |
LED (Battery Status, Power, Sync) |
Operating Temperature |
14 to 122°F / -10 to 50°C |
Storage Temperature |
-4 to 131°F / -20 to 55°C |
Dimensions |
1.3 x 2.4 x 0.7" / 32 x 62 x 17 mm |
Weight |
1.1 oz / 32 g |
Microphone Type |
Integrated |
Sound Field |
Mono |
Polar Pattern |
Omnidirectional |
SNR |
84 dB |
Maximum SPL |
120 dB SPL |
Sensitivity |
-39 dB |
Microphone Type |
Lavalier |
Sound Field |
Mono |
Polar Pattern |
Omnidirectional |
Maximum SPL |
110 dB SPL |
Output Connectors |
1 x 1/8" / 3.5 mm TRS Male |
Package Weight |
0.865 lb |
Box Dimensions (LxWxH) |
8.8 x 5.8 x 1.9" |
