BOYA  |  SKU: PVMS23628  |  UPC/GTIN : 6971008029253

BOYA BY-XM6-S1 Digital Camera-Mount True-Wireless 1-Person Microphone System (2.4 GHz)

Rs. 8,795.00 Rs. 24,990.00

Offers

  • Get GST invoice and save up to 28% on business purchases.
  • EMI option available.

Delivery and Shipping

USUALLY SHIPS IN 24 HOURS

Pickup

Pickup also available at PhotoVatika Head Office.

Usually ready in 4 hours.

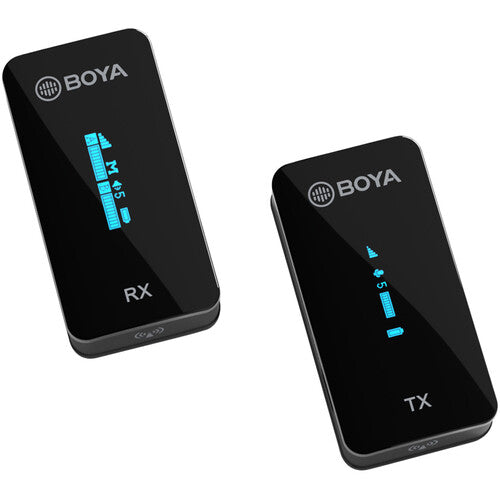

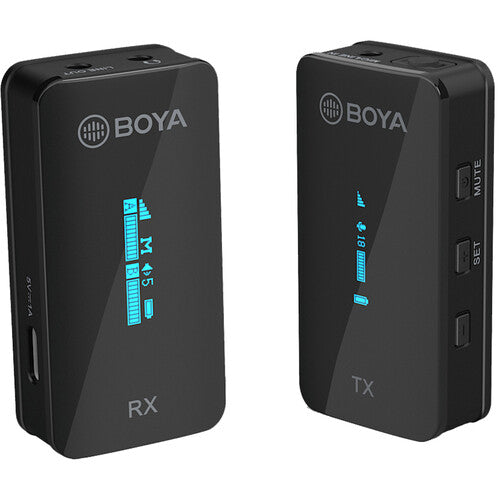

The BOYA BY-XM6-S1, a 2.4GHz adaptive frequency hopping wireless microphone system, consists of one transmitter and one receiver. It’s a perfect sound capturing and delivering solution for one-person vlog, YouTube video, live streaming, interview, recording, etc.

Advanced Technology for Stable Signal Transmission
The BY-XM6 S1 adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S1 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m (328ft), without obstacle.

Professional Audio Capturing & Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S1 captures and delivers high-quality , clear and low-noise audio.

Ultra-versatile & Ease-to-use Wireless Microphone Kit

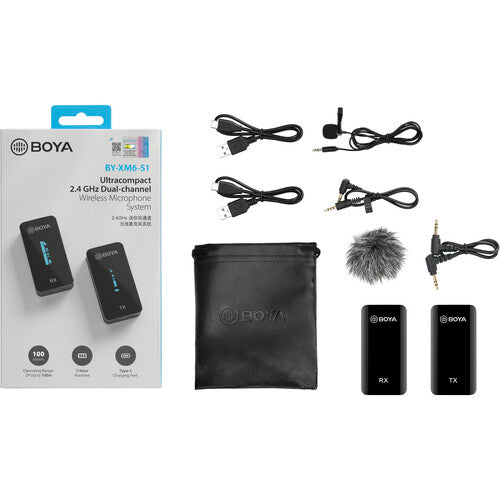

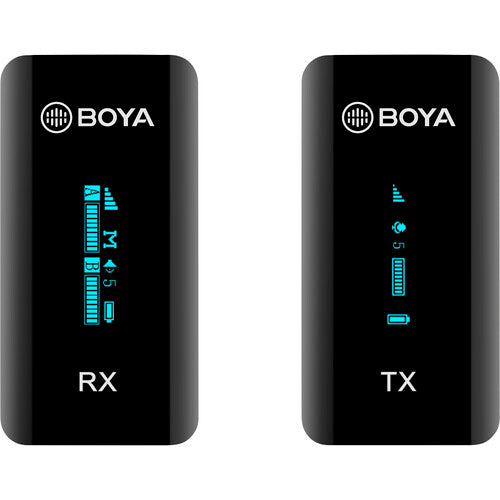

With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is also designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work well with your DSLR or mirrorless camera, smartphone and computer etc.


Specifications
Transmission Type

2.4GHz Digital Frequency

Modulation

GFSK

Operating Range (without obstacle)

Up to 328ft (100m)

RF Output Power

<10mW

Polar Pattern

Omnidirectional

Frequency Response

50Hz-18KHz

Maximum SPL

Built-in Microphone: 120dB SPL

Lavalier Microphone: 110dB SPL

Sensitivity

Built-in Microphone: -39dB

Lavalier Microphone: -39dB

SNR

> 84dB

Power Requirements

Built-in Li-ion Battery or USB-C DC 5V or Charging Contact

Built-in Battery Life

Approx. 7 hours

Antenna

PIFA Antenna

Audio Inputs

3.5mm TRS MIC/LINE IN Jack or Built-in Microphone

Weight

Approx. 32g(1.13oz)

Dimensions

62.1×31.6×16.5mm

Operating Temperature

–10°C to 50°C

Storage Temperature

–20°C to +55°C

Transmission Type

2.4GHz Digital Frequency

Modulation

GFSK

Operating Range (without obstacle)

Up to 328ft (100m)

Audio Output Connector

3.5mm Headphone Jack

3.5mm TRS Output Jack

Audio Output Level

–60 dBV to -20dBV

Power Requirements

Built-in Li-ion Battery or USB-C DC 5V or Charging Contact

Built-in Battery Life

Approx. 6.5 hours

Antenna

PIFA Antenna

Weight

Approx. 32g(1.13oz)

Dimensions

62.1×31.6×16.5mm

Operating Temperature

–10°C to 50°C

Storage Temperature

–20°C to +55°C
